DTC P0606: Control Module Processor: Wiring diagram

Engine Electrical System Ref. to WIRING SYSTEM>Engine Electrical System>WIRING DIAGRAM .

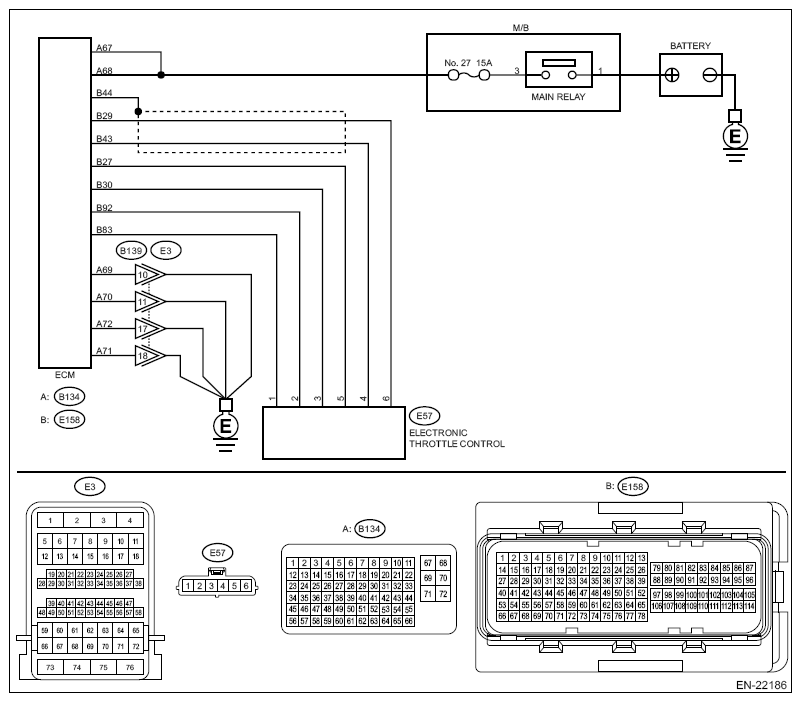

Fig 1: Electronic Throttle Control Circuit Wiring Diagram
G11257335Courtesy of SUBARU OF AMERICA, INC.
  1. CHECK INPUT VOLTAGE OF ECM (OPEN)  .
    1. Turn the ignition switch to ON.
    2. Measure the voltage between ECM connector and chassis ground.

      Connector & terminal

      (B134) No. 67 (+) - Chassis ground (-):

      (B134) No. 68 (+) - Chassis ground (-):

    Is the voltage 10 - 13 V?

    • Yes  : Go to  2.
    • No  : Repair the open or short to ground in the power supply circuit.
  2. CHECK INPUT VOLTAGE OF ECM (SHORT TO GROUND)  .
    1. Turn the ignition switch to OFF.
    2. Disconnect the connector from ECM.
    3. Measure the resistance between ECM connector and chassis ground.

      Connector & terminal

      (B134) No. 67 (+) - Chassis ground (-):

      (B134) No. 68 (+) - Chassis ground (-):

    Is the resistance 1 MΩ or more?

    • Yes  : Go to  3.
    • No  : Repair the short to ground in the power supply circuit.
  3. CHECK HARNESS BETWEEN ECM AND ELECTRONIC THROTTLE CONTROL (OPEN)  .
    1. Turn the ignition switch to OFF.
    2. Disconnect the connector from ECM.
    3. Disconnect the connectors from electronic throttle control.
    4. Measure the resistance of harness between ECM connector and electronic throttle control connector.

      Connector & terminal

      (E158) No. 27 - (E57) No. 5:

      (E158) No. 30 - (E57) No. 3:

    Is the resistance less than 1 Ω?

    • Yes  : Go to  4.
    • No  : Repair the open circuit of harness between ECM connector and electronic throttle control connector.
  4. CHECK ECM GROUND HARNESS (OPEN)  .
    1. Connect all connectors.
    2. Turn the ignition to ON.
    3. Measure the voltage between ECM connector and chassis ground.

      Connector & terminal

      (B134) No. 69 (+) - Chassis ground (-):

      (B134) No. 70 (+) - Chassis ground (-):

      (B134) No. 71 (+) - Chassis ground (-):

      (B134) No. 72 (+) - Chassis ground (-):

    Is the voltage less than 1 V?

    NOTE: In this case, repair the following item:
    • Open circuit in ground circuit
    • Loose engine ground terminal
