Home >> Subaru >> 2018 >> Forester 2.5i, Standard Trans >> Repair and Diagnosis (Single Page) >> Body & Frame >> Seats >> Seat System - Seats >> Remote Control Back Rest System >> Removal >> Remote Control Back Rest Switch

Remote Control Back Rest Switch

  1. Disconnect the ground cable from battery and wait for at least 60 seconds before starting work. Ref. to NOTE>NOTE>BATTERY .
    NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
  2. Remove the rear quarter lower trim. Ref. to EXTERIOR/INTERIOR TRIM>Rear Quarter Trim>REMOVAL .

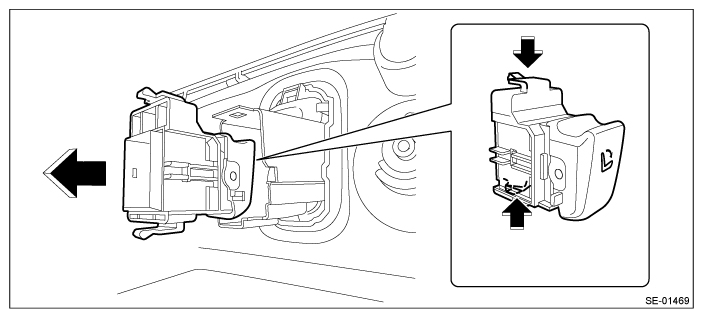

  3. Remove the remote control back rest switch from the rear quarter lower trim.
    G12515764Courtesy of SUBARU OF AMERICA, INC.
