Power Seat Control Module (Only With Memory Function)

  1. Raise the seat cushion by operating the switch.
  2. Disconnect the ground cable from battery and wait for at least 60 seconds before starting work. Ref. to NOTE>NOTE>BATTERY .
    NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
  3. Remove the front seat from the vehicle. Ref. to SEATS>Front Seat>REMOVAL .
  4. Remove the power seat control module.
    1. Release the hooks on seat front and turn over the cushion cover.

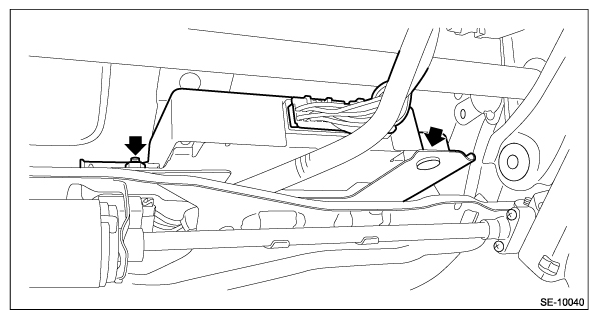

    2. Remove the nuts, and remove the power seat control module.
      G12515748Courtesy of SUBARU OF AMERICA, INC.
