System Block Diagram

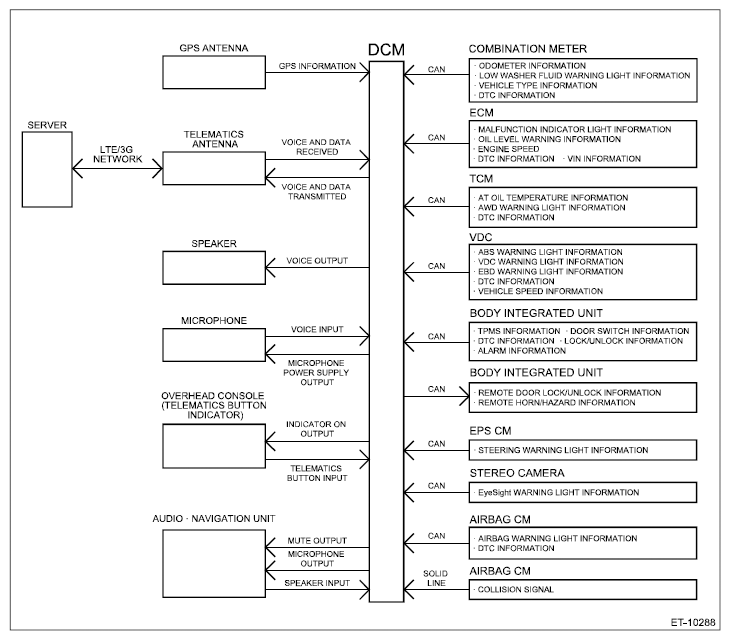

Main signals used between DCM and relevant control module.

G12519428

Courtesy of SUBARU OF AMERICA, INC.
