Diagnostic Method

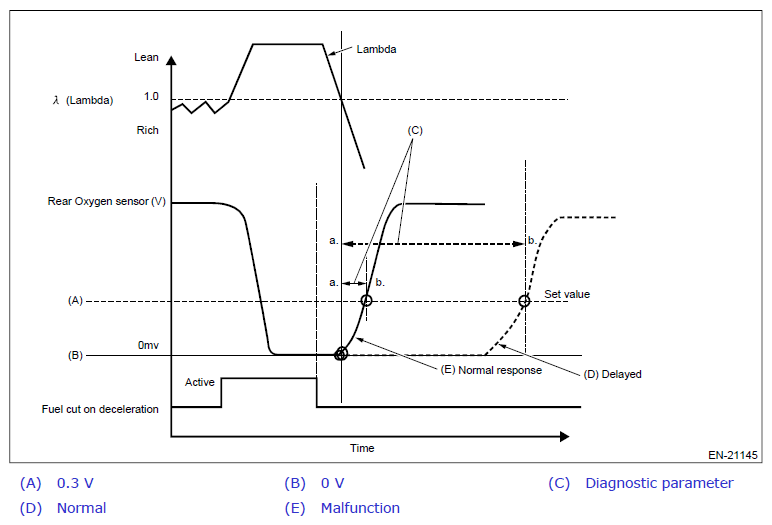

Detect the trouble by calculating the time from the completion of the fuel cut to the beginning of the rear oxygen sensor voltage starting to rise.

Courtesy of SUBARU OF AMERICA, INC.

Judge as NG when the following conditions are established.

JUDGMENT VALUE SPECIFICATION

Malfunction Criteria

Threshold Value

Output voltage value of rear oxygen sensor

< 0.2V

Elapsed time⁽¹⁾

> Map

⁽¹⁾	Elapsed time: The time since the → became less than 1 after the end of fuel cut

AMOUNT OF INTAKE AIR - MAP (CVT MODEL)

Amount of intake air (g/s(oz/s))	16 (0.56)	18 (0.63)	20 (0.71)
Elapsed time (ms)	5600	5000	5000

AMOUNT OF INTAKE AIR - MAP (MT MODEL)

Amount of intake air (g/s(oz/s))	20 (0.71)	22 (0.78)	24 (0.85)	28 (0.99)
Elapsed time (ms)	7000	6000	5500	5500

Time needed for diagnosis: Less than 1 second

Malfunction indicator light illumination: Illuminates as soon as a malfunction occurs.
