Turbo Model

Install in the reverse order of removal.

NOTE: Tighten the starter and cable stay (a) together using the upper bolt securing the starter.

Tightening torque:

T1: 14 N.m (1.4 kgf-m, 10.3 ft-lb)

T2: 50 N.m (5.1 kgf-m, 36.9 ft-lb)

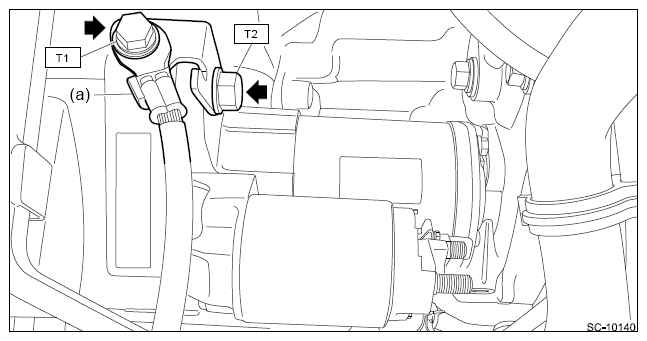

Fig 1: Starter And Cable Stay Bolts (With Torque Specification) (Turbo Model)

Courtesy of SUBARU OF AMERICA, INC.

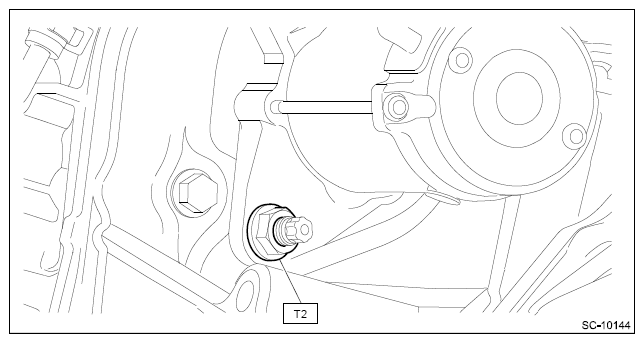

Fig 2: Starter Nut (Torque Specification) (Turbo Model)

Courtesy of SUBARU OF AMERICA, INC.

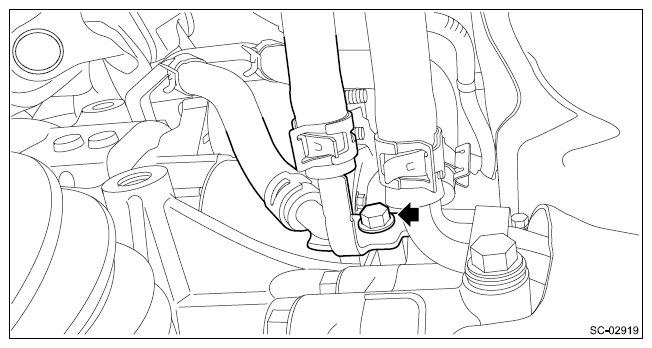

Tightening torque:

16 N.m (1.6 kgf-m, 11.8 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

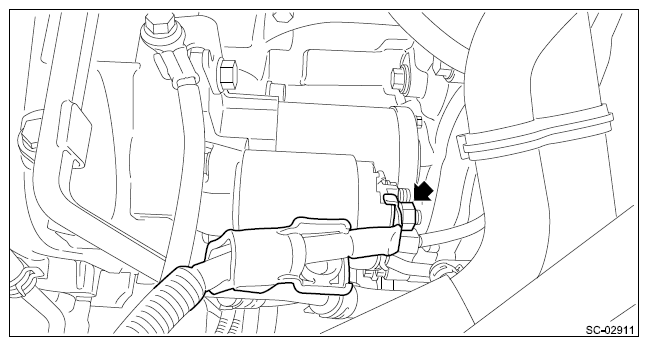

Tightening torque:

11 N.m (1.1 kgf-m, 8.1 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
