Non-Turbo Model

Install in the reverse order of removal.

NOTE:

Tighten the starter and cable stay (a) together using the upper bolt securing the starter.

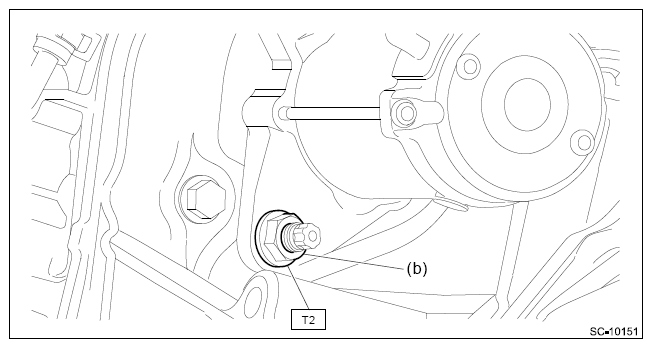

For the MT model, a bolt is used to the location (b).

Tightening torque:

T1: 14 N.m (1.4 kgf-m, 10.3 ft-lb)

T2: 50 N.m (5.1 kgf-m, 36.9 ft-lb)

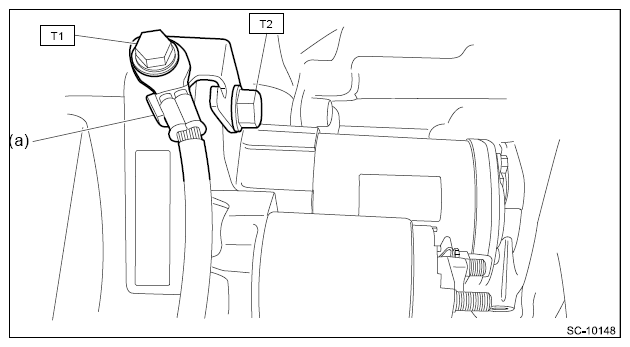

Fig 1: Starter And Cable Stay Bolts (With Torque Specification) (Non-Turbo Model)

Courtesy of SUBARU OF AMERICA, INC.

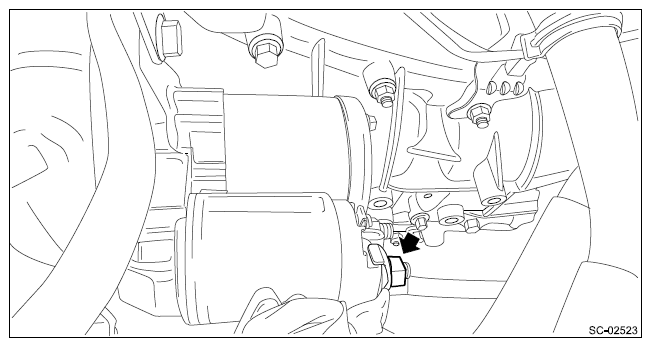

Fig 2: Starter Nut (With Torque Specification) (Non-Turbo Model)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

11 N.m (1.1 kgf-m, 8.1 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

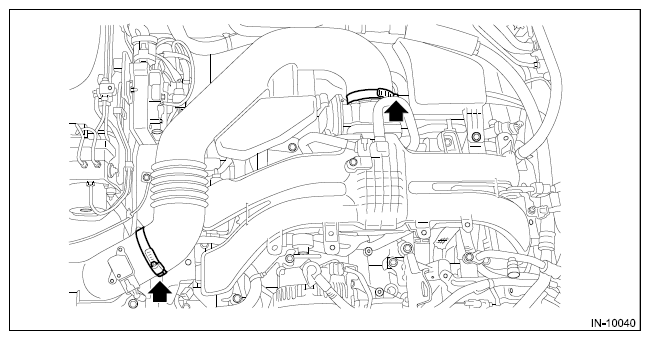

Tightening torque:

3 N.m (0.3 kgf-m, 2.2 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
