Non-Turbo Model

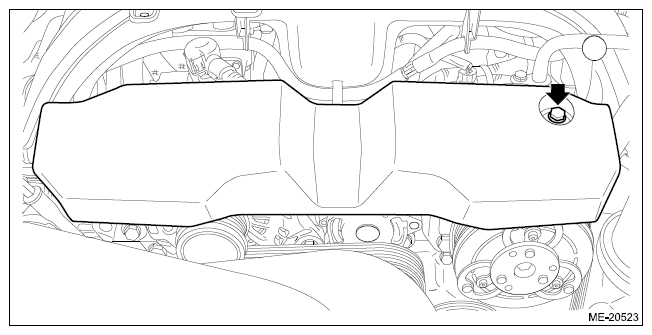

  1. Remove the V-belt covers.
    G12508761Courtesy of SUBARU OF AMERICA, INC.
  2. Disconnect the ground terminal from battery sensor. Ref. to NOTE>NOTE>BATTERY .
  3. Remove the V-belts. Ref. to MECHANICAL (H4DO)>V-belt>REMOVAL>V-BELT .

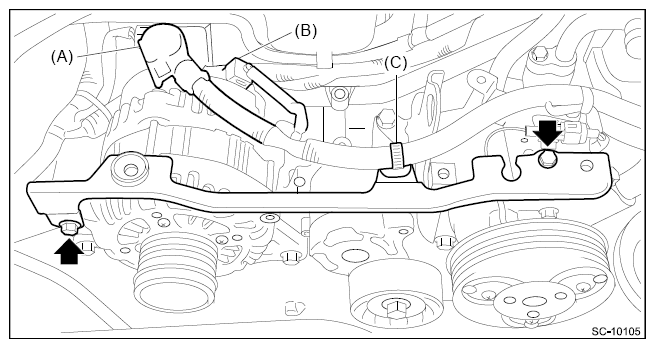

  4. Disconnect the connector (A) and terminal (B) from the generator, and remove the clip (C).
  5. Remove the V-belt cover bracket.
    G12508762Courtesy of SUBARU OF AMERICA, INC.

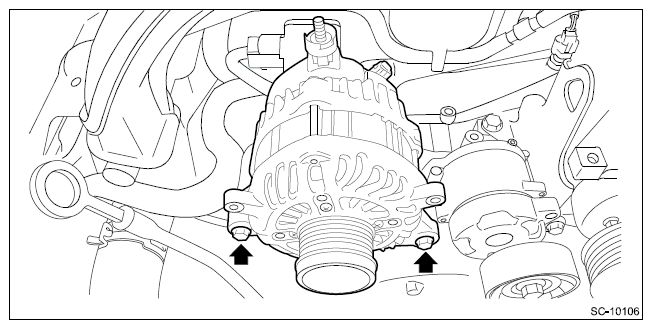

  6. Remove the generator from the generator bracket.
    G12508763Courtesy of SUBARU OF AMERICA, INC.
  7. Remove the V-belt tensioner assembly. Ref. to MECHANICAL (H4DO)>V-belt>REMOVAL>V-BELT TENSIONER ASSEMBLY .

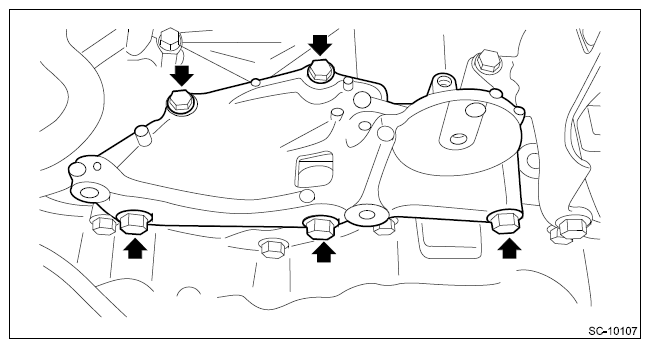

  8. Remove the generator bracket from the engine.
    G12508764Courtesy of SUBARU OF AMERICA, INC.
