Non-Turbo Model

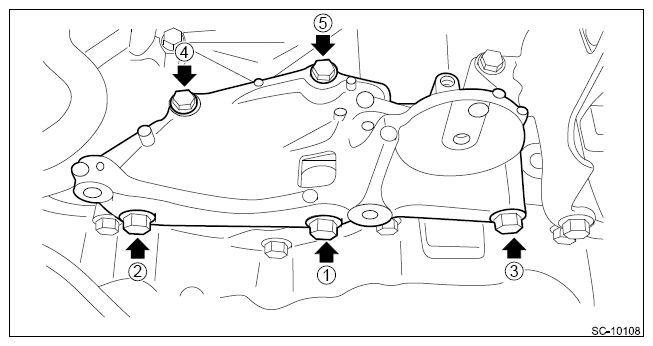

Temporarily install the generator bracket to the engine and tighten the bolts in the numerical order.
Tightening torque:

36 N.m (3.7 kgf-m, 26.6 ft-lb)

Fig 1: Locating Generator Bracket Bolts Tightening Sequence (Non-Turbo Model)
Courtesy of SUBARU OF AMERICA, INC.
Install the V-belt tensioner assembly. Ref. to MECHANICAL (H4DO)>V-belt>INSTALLATION>V-BELT TENSIONER ASSEMBLY .

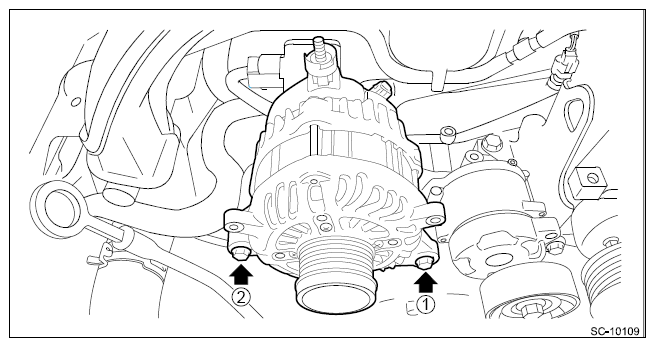

Temporarily install the generator bracket to the generator and tighten the bolts in the numerical order.
Tightening torque:

25 N.m (2. kgf-m, 18.4 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
Install the V-belt cover bracket.

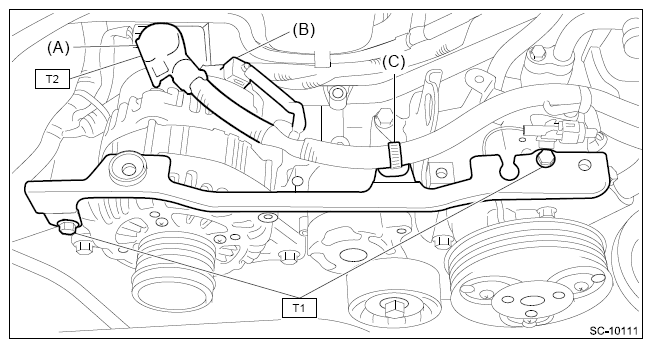

Connect the connector (A) and terminal (B) to the generator, and attach the clip (C).
Tightening torque:

T1: 6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

T2: 15. N.m (1.6 kgf-m, 11.4 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
Install the V-belts. Ref. to MECHANICAL (H4DO)>V-belt>INSTALLATION>V-BELT .
Connect the ground terminal to battery sensor. Ref. to NOTE>NOTE>BATTERY .

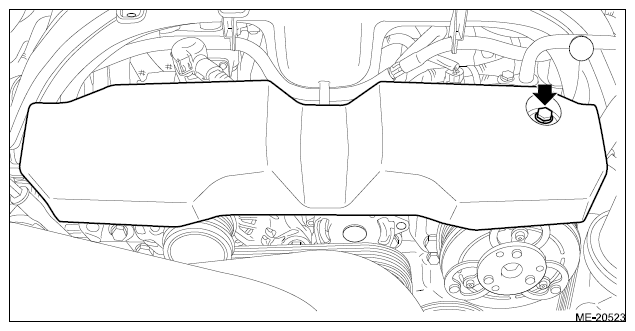

Install the V-belt cover.
Tightening torque:

7 N.m (0.7 kgf-m, 5.2 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
