Non-Turbo Model

Remove the cover from the generator.

Courtesy of SUBARU OF AMERICA, INC.

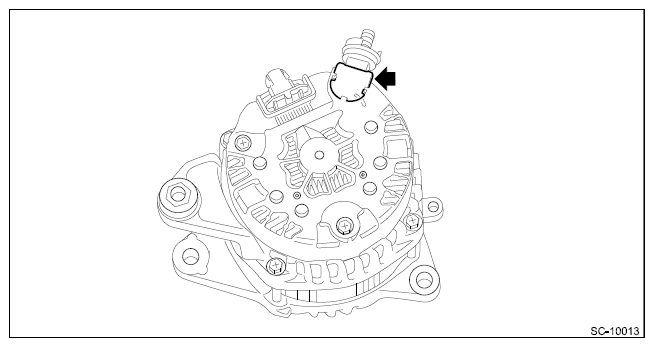

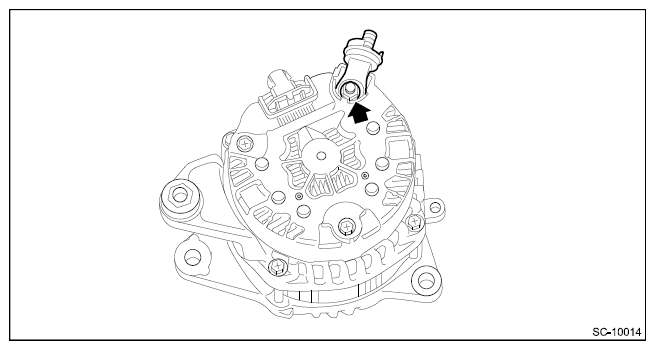

Remove the terminal B from the generator.

Courtesy of SUBARU OF AMERICA, INC.

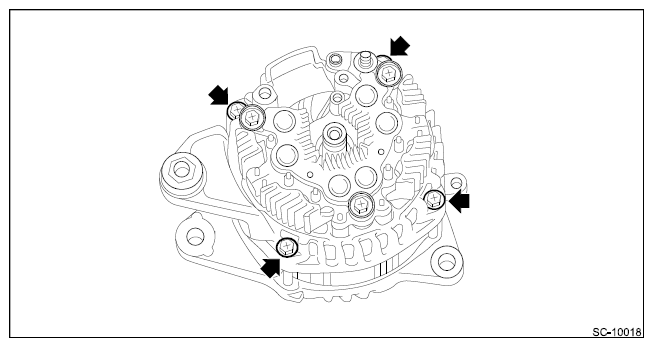

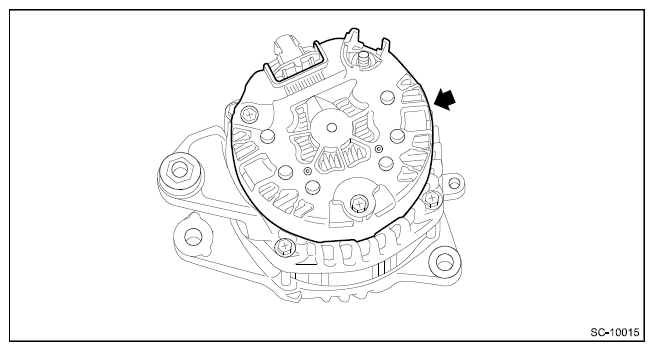

Remove the rear cover from the generator.

Courtesy of SUBARU OF AMERICA, INC.
Remove the brush assembly from the generator.

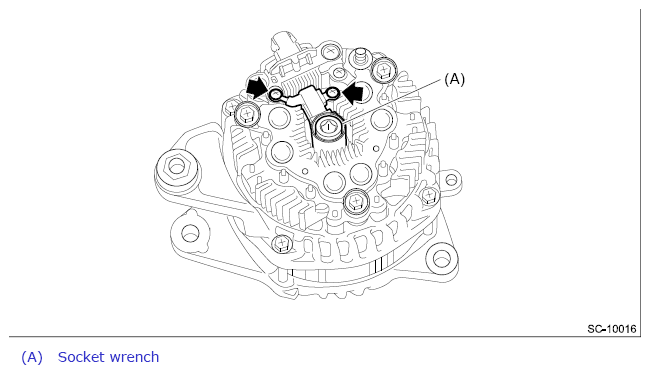

NOTE: To prevent damage to the slip ring, set a socket wrench, etc. with an appropriate size between the brush and the slip ring.

Courtesy of SUBARU OF AMERICA, INC.

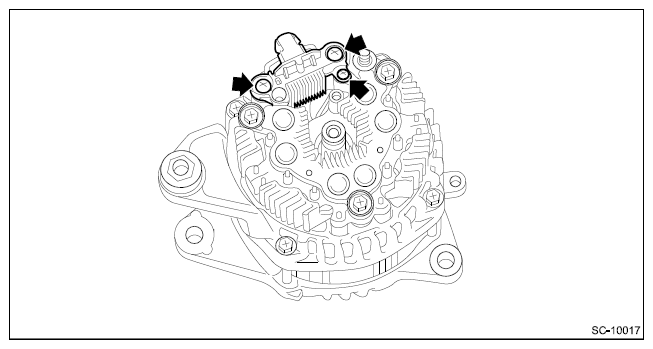

Remove the IC regulator from the generator.

Courtesy of SUBARU OF AMERICA, INC.
Remove the through bolt from the generator.

Courtesy of SUBARU OF AMERICA, INC.

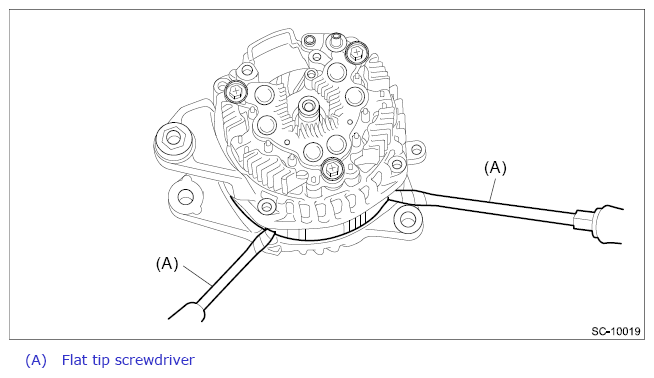

Insert a flat tip screwdriver or similar tool wrapped with protective tape into the gap between stator core and the front cover to disassemble.
CAUTION:

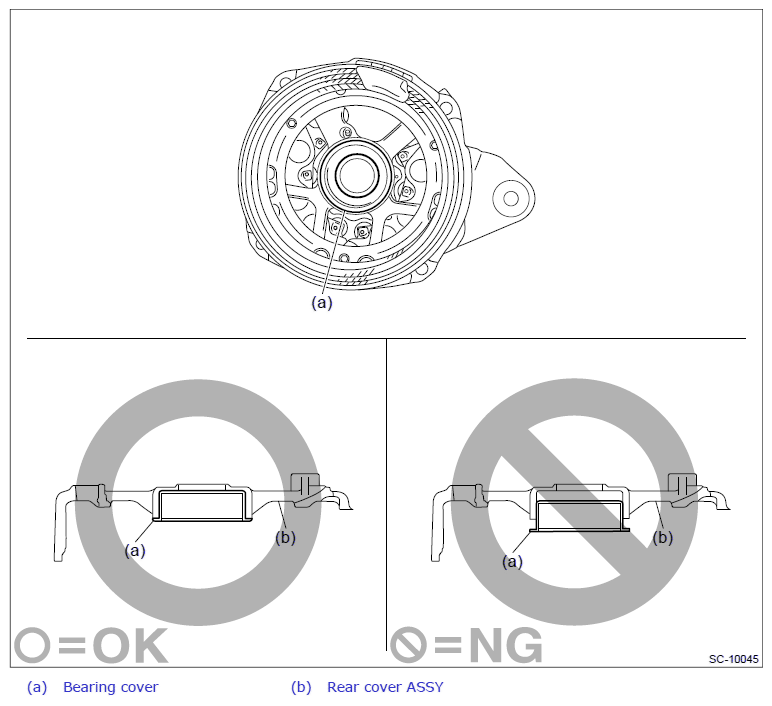

- Do not remove the bearing cover from the rear cover assembly.
- If the bearing cover has been loosen or disengaged from the rear cover assembly, replace the rear cover assembly.
Courtesy of SUBARU OF AMERICA, INC.

Courtesy of SUBARU OF AMERICA, INC.
Remove the cap from the generator.

Courtesy of SUBARU OF AMERICA, INC.

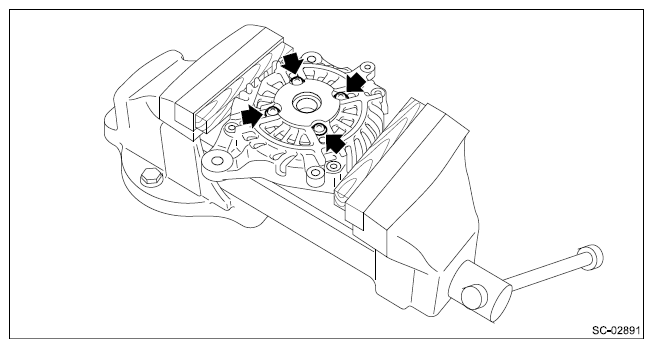

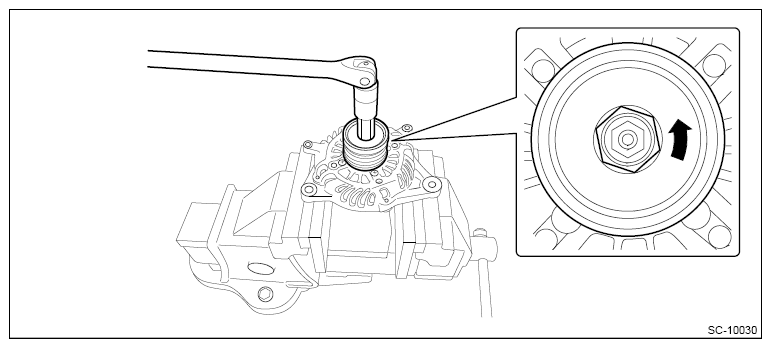

Hold the rotor on a vise and remove the pulley.
CAUTION: When holding the rotor with a vise, place aluminum plates or wooden pieces on the vise jaws to prevent rotor from damage.

Courtesy of SUBARU OF AMERICA, INC.

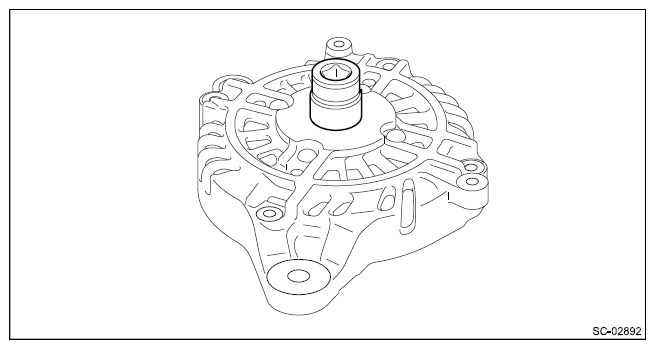

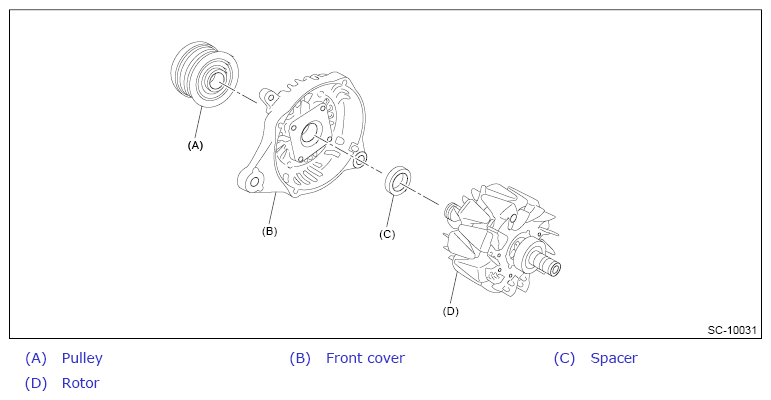

Remove the rotor from the front cover.

Courtesy of SUBARU OF AMERICA, INC.

Use the following procedures to remove the ball bearings.

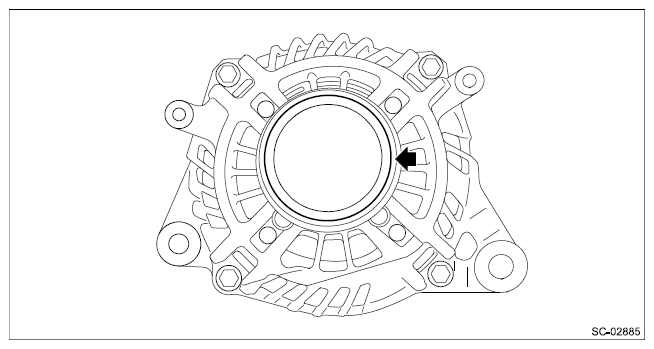

Remove the bolt, and then detach the bearing retainer.

Courtesy of SUBARU OF AMERICA, INC.

Firmly attach an appropriate tool (such as a correct size socket wrench) to the bearing inner race.

Courtesy of SUBARU OF AMERICA, INC.
