Battery Current & Temperature Sensor

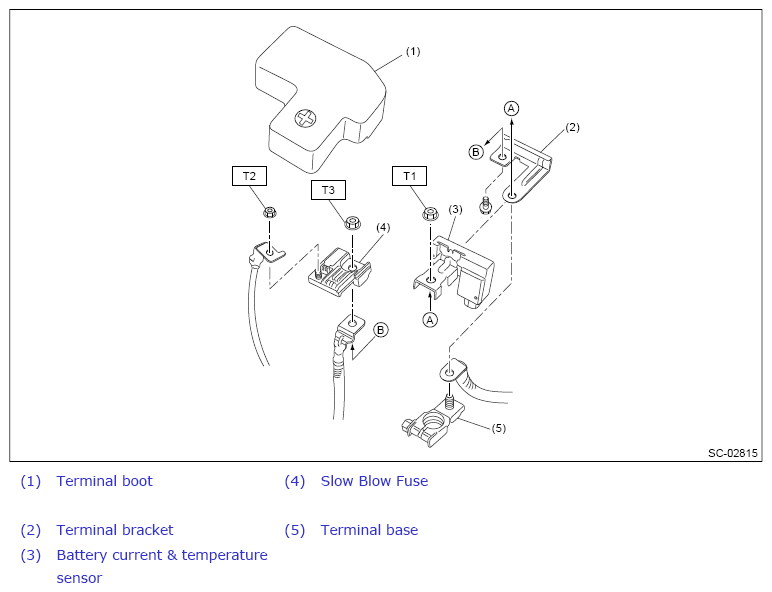

Fig 1: Battery Current And Temperature Sensor Components
G12508704Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 7.5 (0.8, 5.5)

T2: 9 (0.9, 6.6)

T3: 14 (1.4, 10.3)
