Relay and Fuse: Location

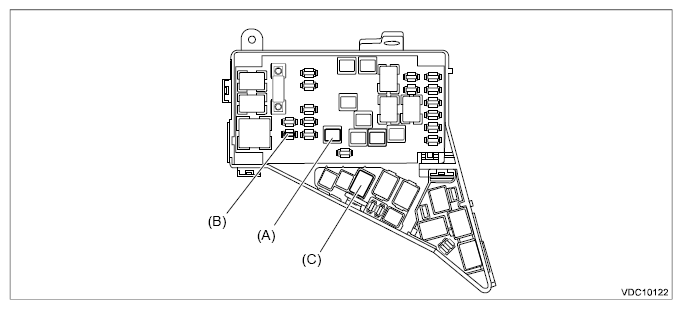

| Main fuse box | Fuse 50A (VDC CM & H/U) | (A) |
| Fuse 30A (VDC CM & H/U) | (B) | |
| Brake light relay | (C) |
NOTE:
For other related fuses, refer to the wiring diagram. Ref. to WIRING SYSTEM>POWER SUPPLY CIRCUIT
.
| Main fuse box | Fuse 50A (VDC CM & H/U) | (A) |
| Fuse 30A (VDC CM & H/U) | (B) | |
| Brake light relay | (C) |
