Rear ABS Wheel Speed Sensor: Removal

CAUTION:

• Be careful not to damage the sensor.
• Do not apply excessive force to the sensor harness.
• Leave the sensor harness clamp on the vehicle side.

1. Disconnect the ground cable from battery. Ref. to NOTE>NOTE>BATTERY .
   NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
2. Lift up the vehicle, and then remove the rear wheels.
3. Tilt the backrest assembly of the rear seat forward.

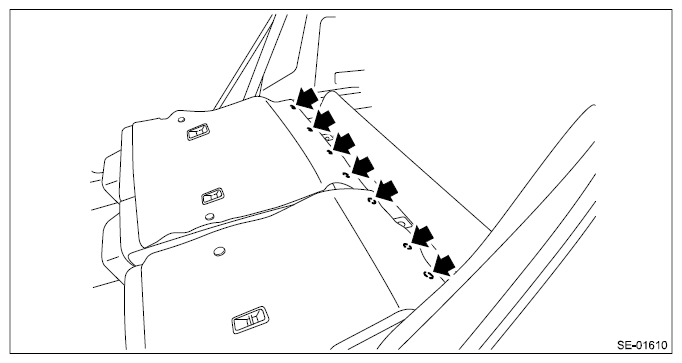

4. Remove the clips located at the bottom of the cover COMPL - rear backrest LH and RH of the rear seat back.

   Courtesy of SUBARU OF AMERICA, INC.

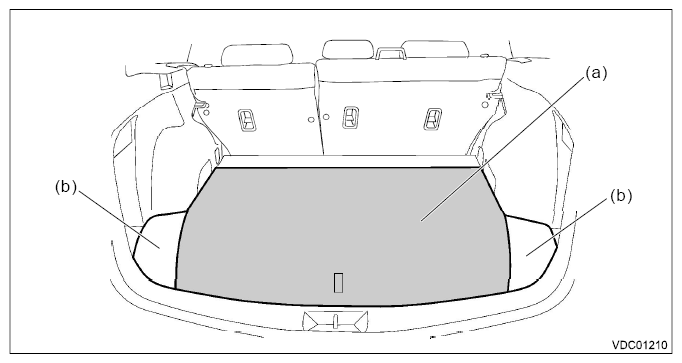

5. Remove the mat - rear floor CTR (a) and the mats - rear floor (b) of right and left sides.

   Courtesy of SUBARU OF AMERICA, INC.

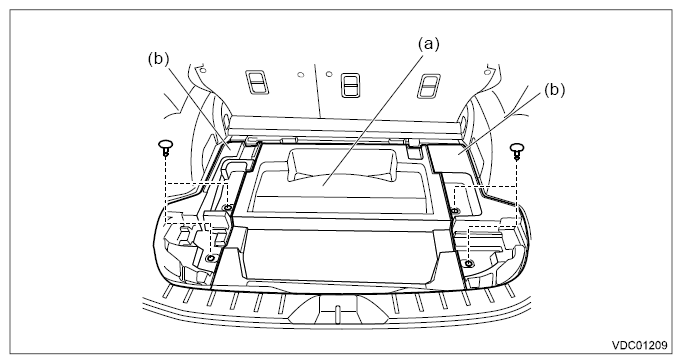

6. Remove the clips and remove the cover - trunk (a) and right and left spacers - rear front side (b).

   Courtesy of SUBARU OF AMERICA, INC.

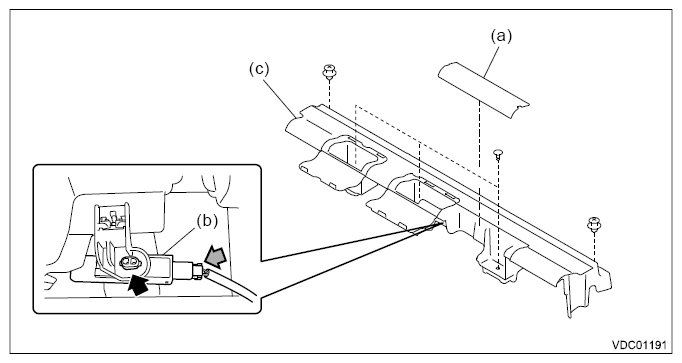

7. Remove the spacer - rear floor front.
   1. Remove the spacer - rear floor front center (a).
   2. Disconnect the connector and remove the rear antenna assembly - interior (b).
   3. Remove the clips and spacer - rear floor front (c).

      Courtesy of SUBARU OF AMERICA, INC.

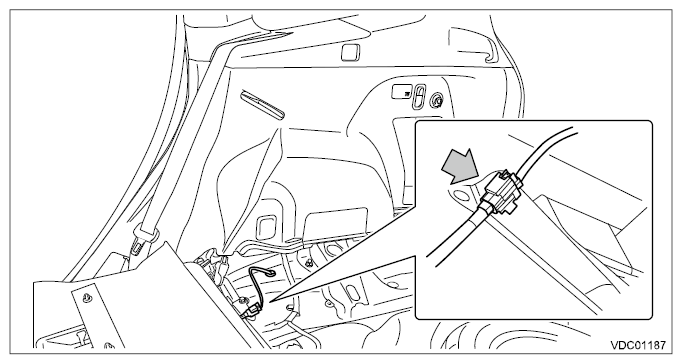

8. Disconnect the connector of the rear ABS wheel speed sensor.

   Courtesy of SUBARU OF AMERICA, INC.

9. Remove the grommet from the rear wheel housing, and pull out the connector of the rear ABS wheel speed sensor.

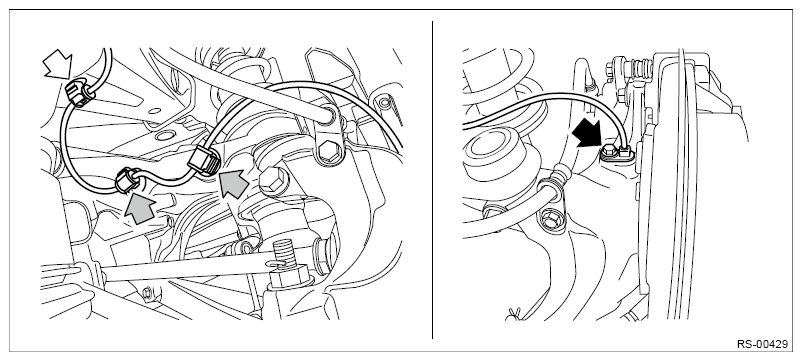

10. Remove the harness clip and bolt, and remove the rear ABS wheel speed sensor.

Courtesy of SUBARU OF AMERICA, INC.
