Auto Headlight Beam Leveler Control Module: Removal

CAUTION: Before handling the airbag system components, always refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM". Ref. to AIRBAG SYSTEM>General Description>CAUTION .
  1. Disconnect the ground cable from battery and wait for at least 60 seconds before starting work. Ref. to NOTE>NOTE>BATTERY .
    NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
  2. Remove the cover assembly - instrument panel LWR driver. Ref. to EXTERIOR/INTERIOR TRIM>Instrument Panel Lower Cover>REMOVAL .
  3. Remove the knee airbag module. Ref. to AIRBAG SYSTEM>Knee Airbag Module>REMOVAL .

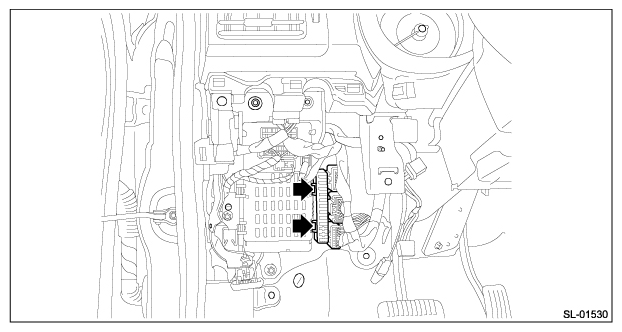

  4. Release the lock and remove the fuse holder.
    G12508522Courtesy of SUBARU OF AMERICA, INC.

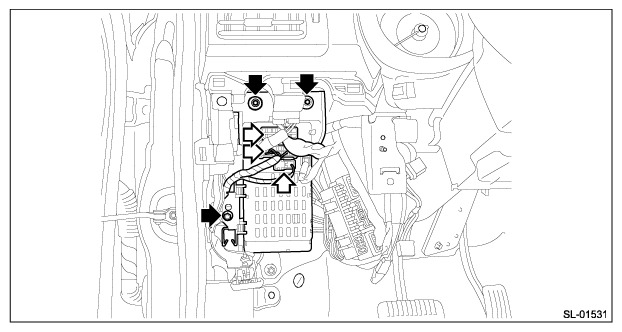

  5. Remove the relay & fuse box.
    1. Disconnect the connector.
    2. Remove the bolts and nuts, and remove the relay & fuse box.
      G12508523Courtesy of SUBARU OF AMERICA, INC.

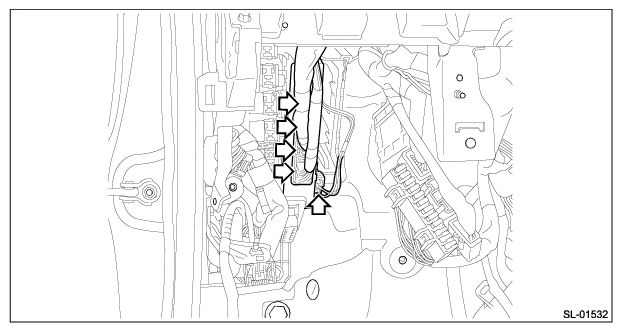

  6. Disconnect the connector of body integrated unit.
    G12508524Courtesy of SUBARU OF AMERICA, INC.
    NOTE: On model with keyless access with push button start, disconnect the keyless access CM connector.

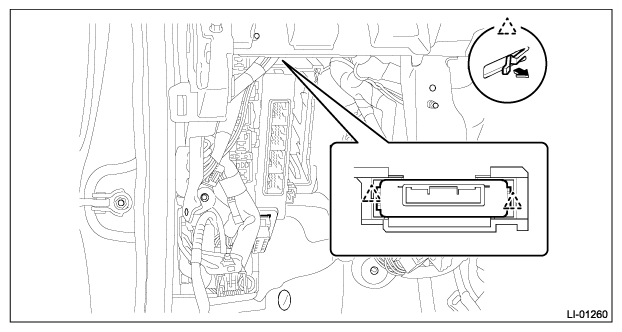

  7. Remove the auto headlight beam leveler CM.
    1. Disconnect the connector.
    2. Release the claws and pull out the auto headlight beam leveler CM.
      G12508525Courtesy of SUBARU OF AMERICA, INC.
