High-Pressure Fuel Pump

CAUTION:
  • Be careful not to spill fuel.
  • Catch the fuel from the pipes using a container or cloth.
  1. Disconnect the ground cable from battery.
  2. Remove the high-pressure fuel delivery pipes. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>High Pressure Fuel Delivery Pipe>REMOVAL>HIGH-PRESSURE FUEL DELIVERY PIPE .

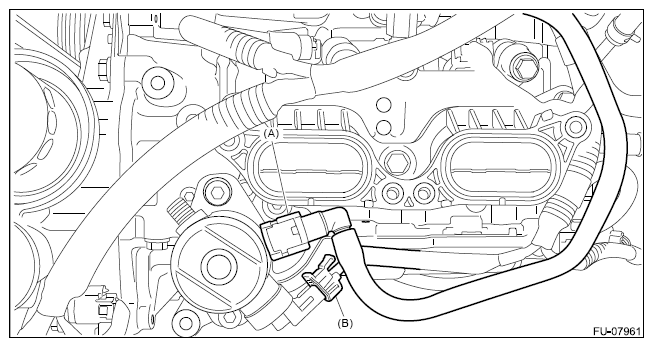

  3. Remove the fuel delivery pipe (A) from the high-pressure fuel pump, and disconnect the connector (B) from the high-pressure fuel pump.
    NOTE: Disconnect the quick connector as shown in the figure.
    G12508948Courtesy of SUBARU OF AMERICA, INC.
    G12508949Courtesy of SUBARU OF AMERICA, INC.

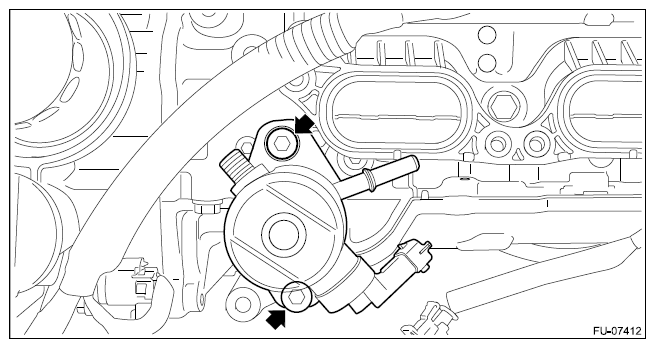

  4. Using TORX PLUS® bit 40IP, remove the high-pressure fuel pump.
    G12508950Courtesy of SUBARU OF AMERICA, INC.

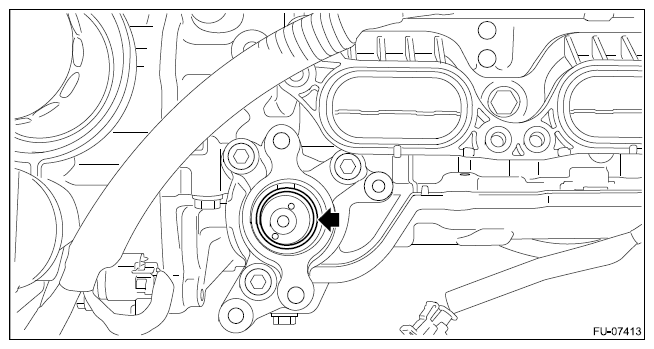

  5. Remove the fuel pump lifter from the fuel pump case.
    G12508951Courtesy of SUBARU OF AMERICA, INC.
