Solenoid Unit

  1. Clean all the parts before assembly.

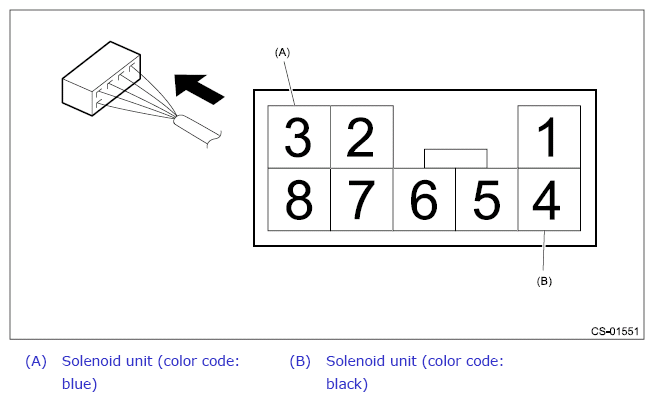

  2. Insert the solenoid unit terminals to the harness connector.
    G12392858Courtesy of SUBARU OF AMERICA, INC.
  3. Install the solenoid unit.
  4. Install the harness connector to the plate COMPL.
  5. Install the spacer plate and the gasket. Ref. to CONTROL SYSTEMS>Select Lever>ASSEMBLY>CLIP ASSEMBLY .
  6. Install the select lever. Ref. to CONTROL SYSTEMS>Select Lever>INSTALLATION .
