DTC P0116: Engine Coolant Temperature Sensor 1 Circuit Range/Performance: Notes

DTC detecting condition:

Detected when two consecutive driving cycles with fault occur.

Trouble symptom:

Hard to start
Improper idling
Poor driving performance

CAUTION: Use the check board when measuring the ECM terminal voltage and resistance. Ref. to ENGINE (DIAGNOSTICS) (H4DO)>General Description>PREPARATION TOOL>HOW TO USE CHECK BOARD .

NOTE: After the faulty parts are repaired or replaced, perform the final check in Basic Diagnostic Procedure. Ref. to ENGINE (DIAGNOSTICS) (H4DO)>Basic Diagnostic Procedure>PROCEDURE .

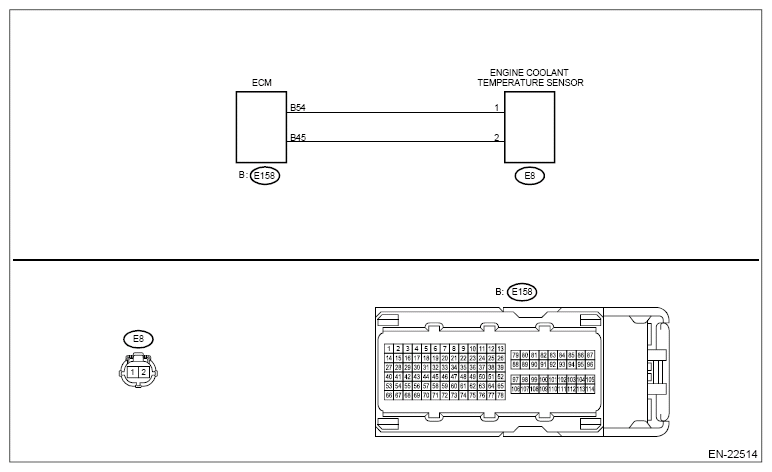

Wiring diagram:

Engine Electrical System Ref. to WIRING SYSTEM (CROSSTREK MODEL)>Engine Electrical System>WIRING DIAGRAM .

Courtesy of SUBARU OF AMERICA, INC.

CHECK DTC .
Using the Subaru Select Monitor or a general scan tool, read the DTC of [Engine]. Ref. to ENGINE (DIAGNOSTICS) (H4DO)>DIAGNOSTIC TROUBLE CODE (DTC) .

DTC Check

Is DTC P0116 displayed? (Current malfunction)

Yes: Go to 2.

No: Check the appropriate DTC using the "Diagnostic Trouble Code (DTC)". Ref. to ENGINE (DIAGNOSTICS) (H4DO)>DIAGNOSTIC TROUBLE CODE (DTC) .
CHECK ENGINE COOLANT TEMPERATURE SENSOR .
1. Disconnect the connectors from the engine coolant temperature sensor.
2. Measure the resistance between engine coolant temperature sensor terminals when the engine coolant is cold and after warmed up.
  Terminals

  No. 1 - No. 2:
Is the resistance of engine coolant temperature sensor different between when engine coolant is cold and after warmed up?

Yes: Repair the poor contact of ECM connector.

No: Replace the engine coolant temperature sensor. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>ENGINE COOLANT TEMPERATURE SENSOR .
