VDC Control Module and Hydraulic Control Unit (VDC CONTROL MODULE & H/U): Removal

CAUTION:
  • Avoid unnecessary removal of parts in order to prevent fluid leakage.
  • When the VDC Control Module & H/U components are removed, be sure to perform the installation according to the installation procedures. Ref. to VEHICLE DYNAMICS CONTROL (VDC)>VDC Control Module and Hydraulic Control Unit (VDC Control Module & H/U)>INSTALLATION .
  1. Disconnect the ground cable from battery. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Move the air intake boot. Ref. to INTAKE (INDUCTION) (H4DO)>Air Intake Boot>REMOVAL .
    NOTE: With the PCV hose connected, remove the air intake boot from the air cleaner case (rear) and throttle body.
  3. Remove the VDC control module & hydraulic control unit (VDC Control Module & H/U).
    CAUTION:
    • Do not pull on the harness when disconnecting the connector.
    • Wrap the brake pipe with a vinyl bag so as not to spill the brake fluid on the painted surface of the vehicle body.
    • If brake fluid is spilled on the painted surface of the vehicle body, wash it off immediately with water and wipe clean.
    1. Remove any dirt from around the VDC Control Module & H/U.

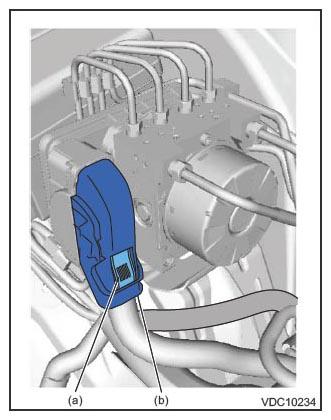

    2. Pull up the lock lever (b) while pressing the lock button (a) and disconnect the VDC Control Module & H/U connector.
      G11255143Courtesy of SUBARU OF AMERICA, INC.

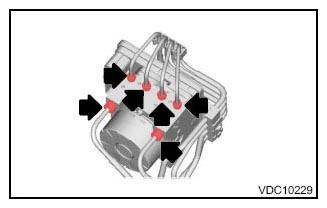

    3. Separate each brake pipe using a flare nut wrench.
      G11255144Courtesy of SUBARU OF AMERICA, INC.

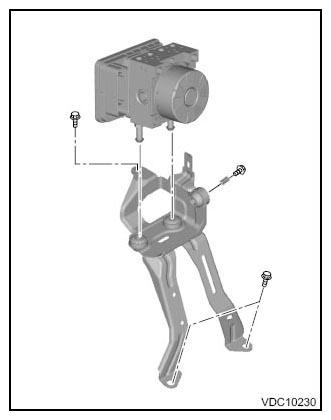

    4. Remove the bolts and remove the bracket - hydraulic unit and VDC Control Module & H/U.
      G11255145Courtesy of SUBARU OF AMERICA, INC.
