Radar Sensor LH (Master)

WARNING: This page is about a different car, the 2022 Subaru WRX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY
  2. Remove the light assembly combination. Ref. to LIGHTING SYSTEM>REAR COMBINATION LIGHT ASSEMBLY>REMOVAL
  3. Remove the bumper face rear. Ref. to EXTERIOR/INTERIOR TRIM>REAR BUMPER>REMOVAL

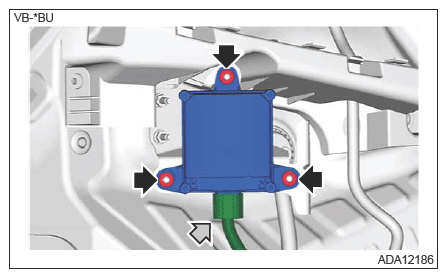

  4. Remove the radar sensor LH (master).
    1. Disconnect the connector.
    2. Remove the nut and remove the radar sensor LH (master).
      G14613226Courtesy of SUBARU OF AMERICA, INC.

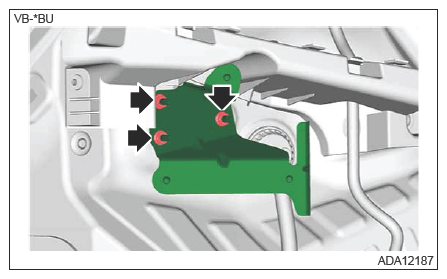

  5. Remove the nuts, and remove the radar bracket LH.
    G14613227Courtesy of SUBARU OF AMERICA, INC.
