Stereo Camera

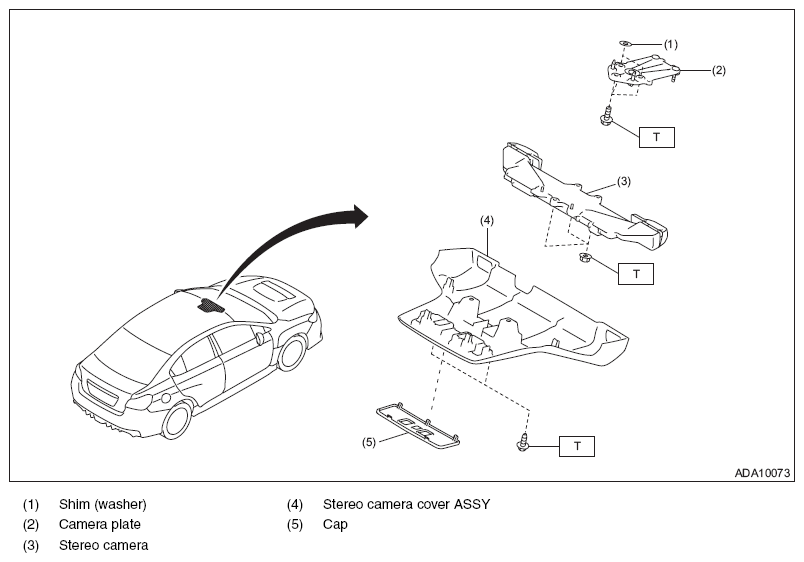

Fig 1: Stereo Camera Components With Torque Specifications
G11581582Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 5.5  ±1 (0.56  ±0.1, 4.1  ±0.7)
