Radar Sensor LH (Master)

  1. Disconnect the ground cable from battery. <Ref. to BATTERY , NOTE, Note.>
    NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
  2. Remove the bumper face - rear. <Ref. to REMOVAL , Rear Bumper.>
  3. Remove the radar sensor LH (master).
    1. Disconnect the connector.
    2. Remove the nut and remove the radar sensor LH.

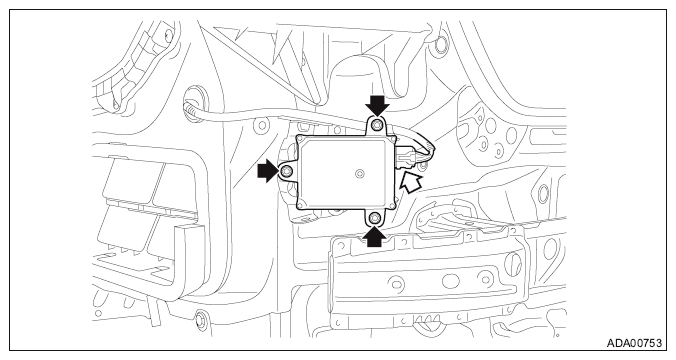

    Fig 1: Locating Radar Sensor LH (Master)
    G10299425Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the radar bracket.
    1. Remove the harness clamp.
    2. Remove the nut and remove the radar bracket.

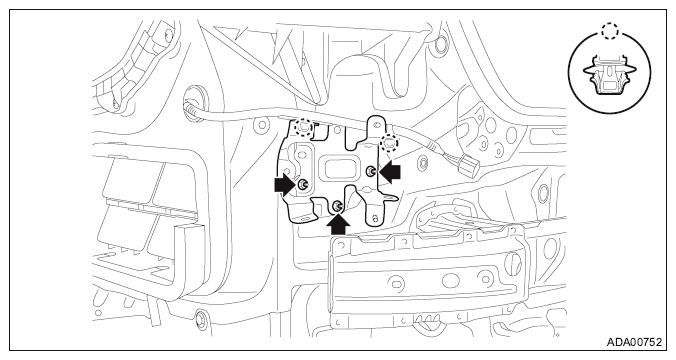

    Fig 2: Locating Radar Bracket Nut
    G10299426Courtesy of SUBARU OF AMERICA, INC.
