Subaru
>>
2017
>>
Outback 2.5i
>>
Repair and Diagnosis
>>
Engine Mechanical
>>
Engine Lubrication System (H4DO)
>>
Oil Level Switch
>>
Wiring Diagram
Oil Level Switch: Wiring Diagram
Engine electrical system Ref. to
WIRING DIAGRAM
, Engine Electrical System.
CAN communication system Ref. to
WIRING DIAGRAM
, CAN Communication System.

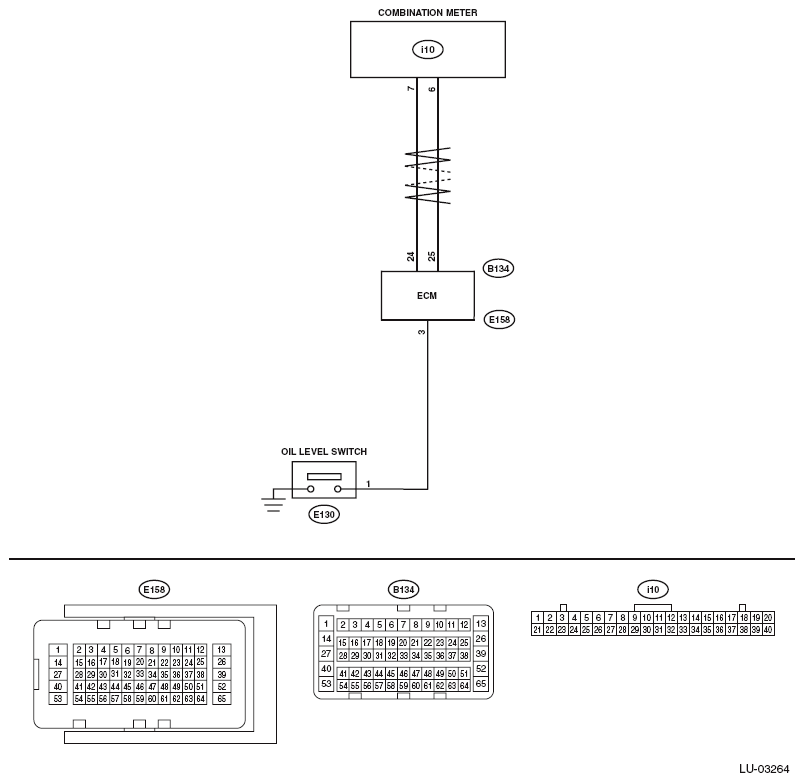

Fig 1: CAN Communication System Wiring Diagram
Courtesy of SUBARU OF AMERICA, INC.
