Radar Sensor LH (Master)

  1. Disconnect the ground terminal from battery sensor. <Ref. to BATTERY , NOTE, Repair Contents.>
  2. Remove the bumper face - rear. <Ref. to REMOVAL , Rear Bumper.>
  3. Remove the radar sensor LH (master).
    1. Disconnect the connector.
    2. Remove the nut and remove the radar sensor LH.
    Fig 1: Locating Radar Sensor LH Nuts
    G10273351Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the radar bracket.
    1. Remove the harness clamp. (OUTBACK model)
    2. Remove the nut and remove the radar bracket.

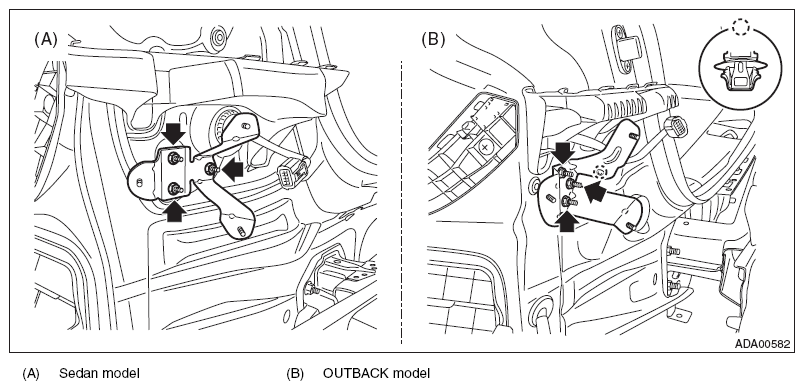

    Fig 2: Removing Radar Bracket Nuts
    G11567856Courtesy of SUBARU OF AMERICA, INC.
