Unit inspection

Check of select lever ASSY

RESISTANCE SPECIFICATIONS

Inspection terminals	Inspection conditions (shift position)	Standard value
1 - 3	Select lever in any other than P position	Less than 1 Ω
2	- 3 Select lever in P position
8 - 9	When select lever is in M position and shifted to "+"
10 - 11	Select lever in M position
12 - 13	When select lever is in M position and shifted to "-"
1	- 3 Select lever in P position	10 k Ωor more
2 - 3	Select lever in any other than P position
8 - 9	Except when select lever is in M position and shifted to "+"
10 - 11	Select lever in any other than M position
12 - 13	Except when select lever is in M position and shifted to "-"

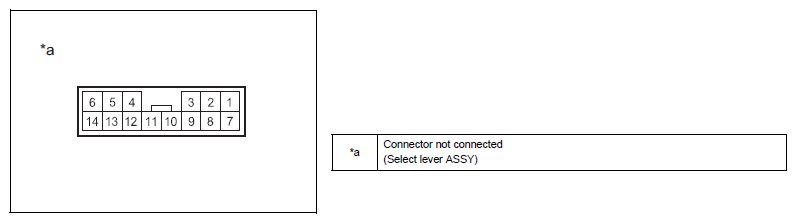

Fig 1: Select Lever Assembly Connector End View

Courtesy of SUBARU OF AMERICA, INC.

Check of shift lock solenoid ASSY
1. Measure the resistance between the terminals.

Fig 2: Identifying Shift Lock Solenoid Assembly Connector Terminals

Courtesy of SUBARU OF AMERICA, INC.

RESISTANCE SPECIFICATIONS

Inspection terminals	Inspection conditions	Standard value
4 - 5	20°C	27.6 to 30.5 Ω
