Description of functions

The master cylinder pressure sensor is integrated into the brake actuator ASSY and connected to the skid control computer.

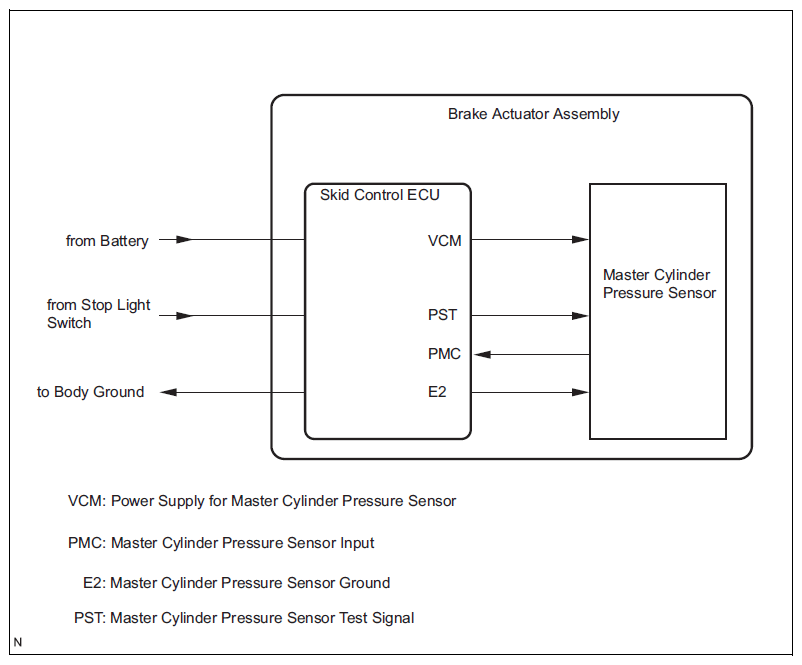

Fig 1: Pressure Sensor System Circuit Diagram
G11260642Courtesy of SUBARU OF AMERICA, INC.
Diagnostic codes DTC detecting conditions Faulty part
C1246
  • Voltage of the sensor signal is outside the specified range.
  • The offset value of the sensor signal is outside the specified range.
  • STOP fuse
  • Stop light switch circuit
  • Wiring harness and connector
  • Brake actuator ASSY (master cylinder pressure sensor circuit)
  • Skid control computer (brake actuator ASSY)
