VSC (VDC) OFF switch: Removal

  1. Removal of shift lever knob (transmission M/T) (Refer to Disassembly )
  2. Removal of shifting hole cover SUB-ASSY (transmission M/T) (Refer to Disassembly )
  3. Removal of shift lever knob (transmission A/T) (Refer to Disassembly )
  4. Removal of shifting hole cover SUB-ASSY (transmission A/T) (Refer to Disassembly )
  5. Removal of console switch ASSY
    1. Disconnect the connector.
    2. Disconnect the connector clamp. (Transmission A/T)
    3. Remove 2 screws and remove the console switch ASSY from the shifting hole cover SUB-ASSY.

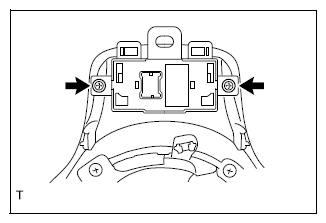

    Fig 1: Locating Console Switch Assembly And Shifting Hole Cover Sub-Assembly Screws
    G11260708Courtesy of SUBARU OF AMERICA, INC.
