Diagnostic Procedure with Diagnostic Trouble Code (DTC)
>>
DTC P0141 O2 Sensor Heater Circuit (Bank1 Sensor2)
>>
Component Description
Component Description

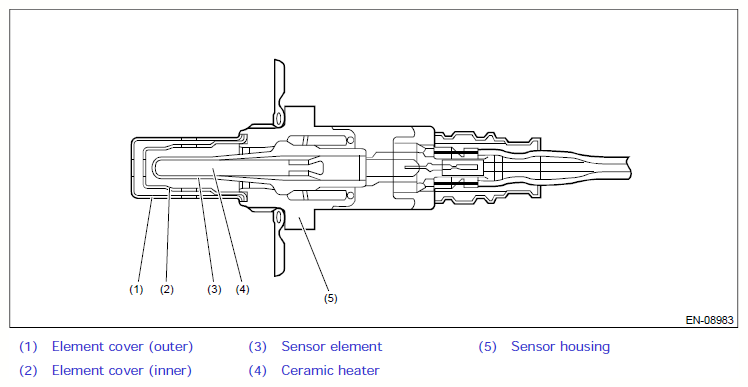

Fig 1: Identifying Rear Oxygen Sensor Components
Courtesy of SUBARU OF AMERICA, INC.
