5 Door Model/CROSSTREK Model

WARNING: This page is about a different car, the 2016 Subaru Impreza and 2016 Subaru Crosstrek. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the ground cable from battery. < Ref. to BATTERY , NOTE, Note. >
NOTE: For the 12 volt engine restart battery of HEV model, disconnect the ground terminal from 12V engine restart battery sensor.
Remove the light assembly - rear combination.
CAUTION: Be careful not to damage the clips.
1. Release the bolts and clips, then pull out the light assembly - rear combination to the vehicle rear.
2. Disconnect the connector and remove the light assembly - rear combination.

  Fig 1: Removing Light Assembly - Rear Combination
  Courtesy of SUBARU OF AMERICA, INC.
Remove the bulb socket and rear turn signal light bulb.
CAUTION: Use a dry clean cloth so that no grease or water adheres to the glass portion of the bulb.
- Gasoline engine model

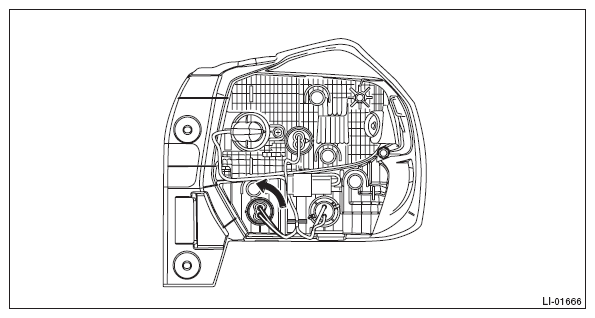

  Fig 2: Removing Bulb Socket And Rear Turn Signal Light Bulb (Gasoline Engine Model)
  Courtesy of SUBARU OF AMERICA, INC.
- HEV model

  Fig 3: Removing Bulb Socket And Rear Turn Signal Light Bulb (HEV Model)
  Courtesy of SUBARU OF AMERICA, INC.
