Engine Controls (Diagnostics) (H4DOTC) - Diagnostic Introduction: Electrical Component Location: Location: Sensor

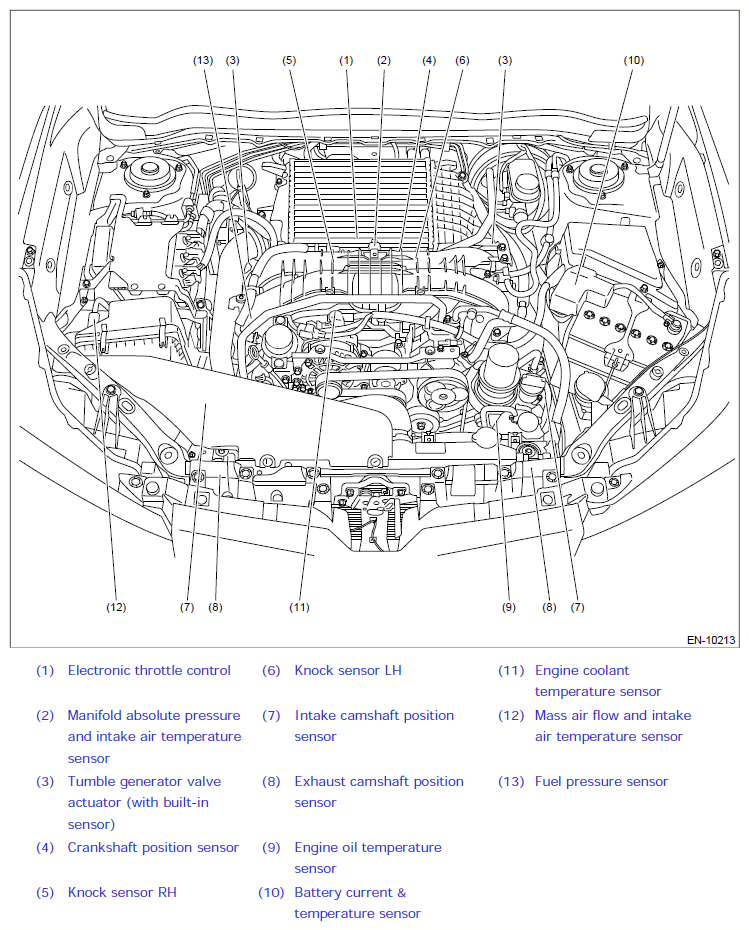

Fig 1: Sensor Electrical Component Location (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

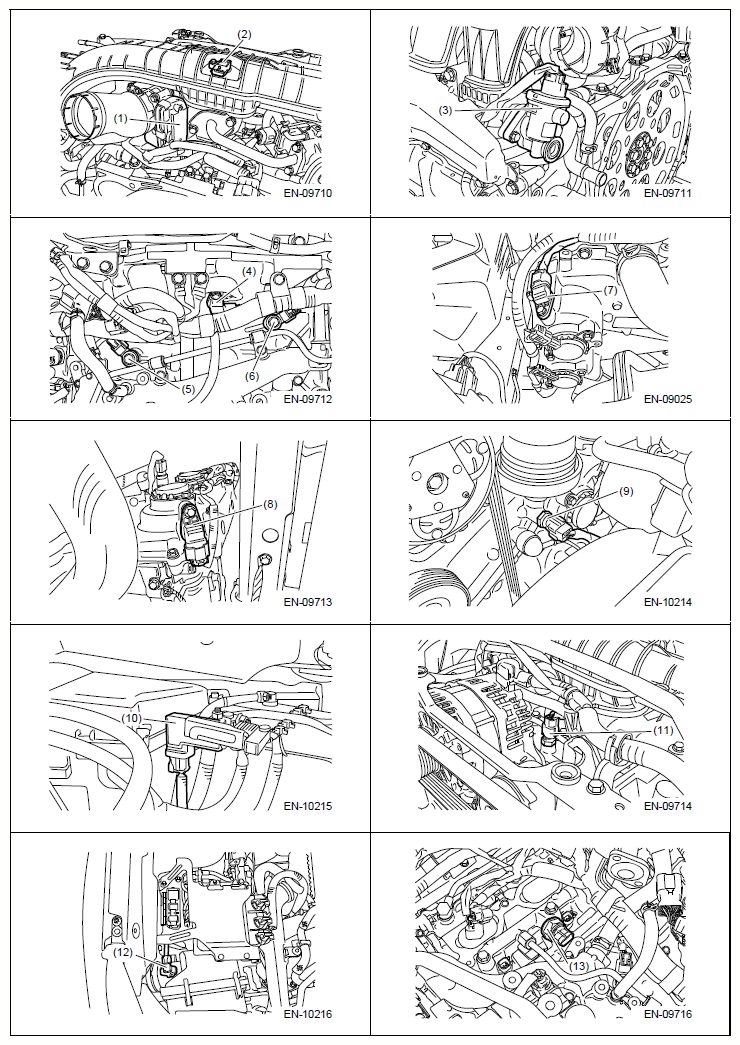

Fig 2: Sensor Electrical Component Location (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

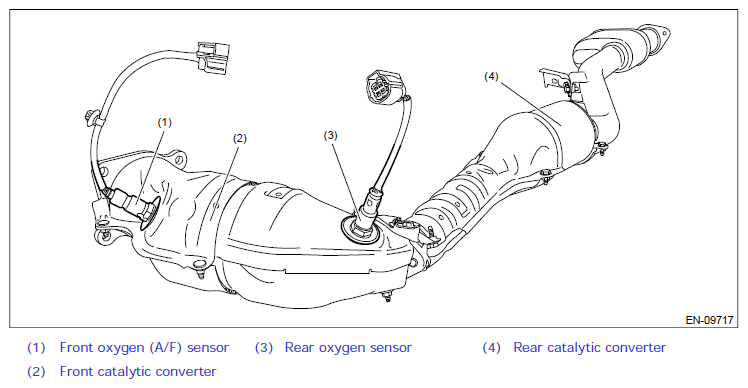

Fig 3: Catalytic Converter Electrical Component Location

Courtesy of SUBARU OF AMERICA, INC.

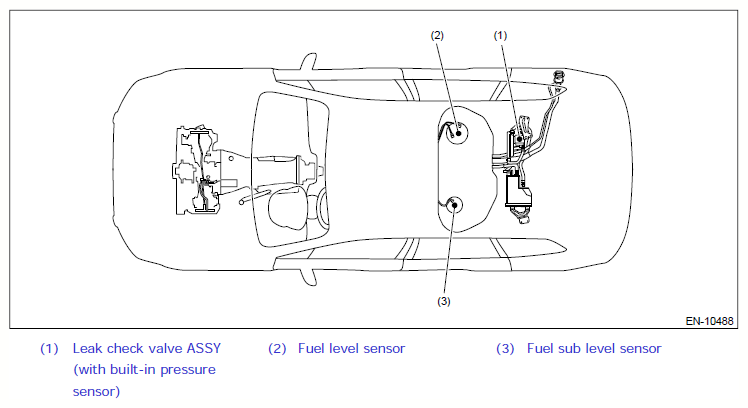

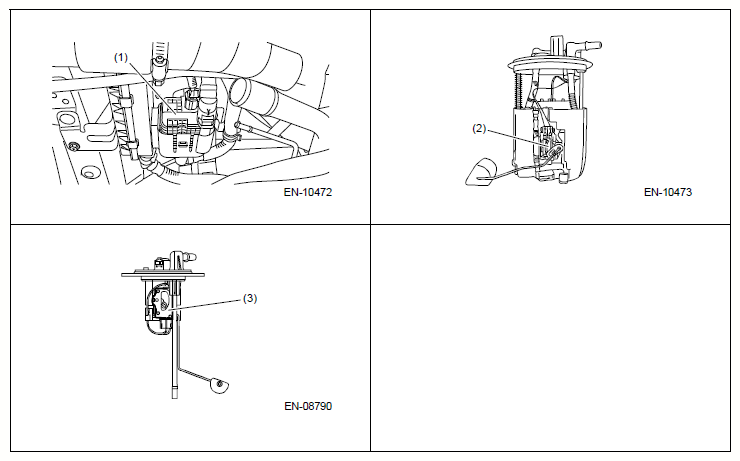

Fig 4: Vehicle Electrical Component Location (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

Fig 5: Vehicle Electrical Component Location (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.
