Yaw Rate & G Sensor

Only for models with EyeSight

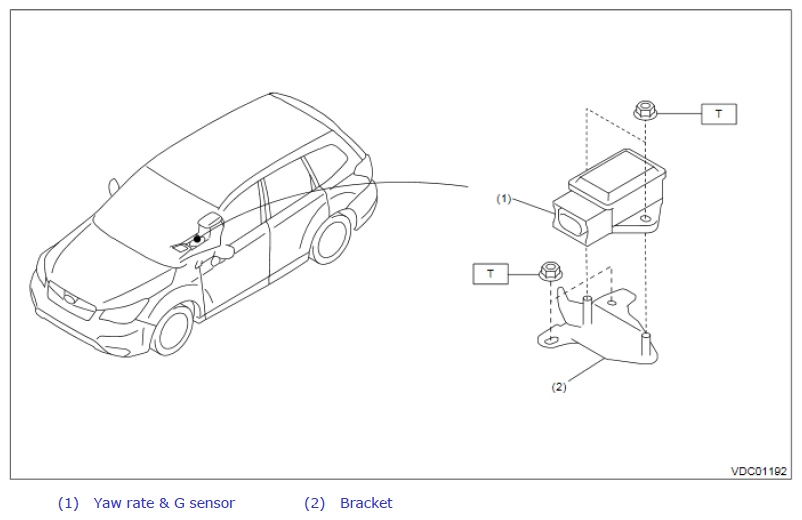

Fig 1: Identifying Yaw Rate & G Sensor Related Components With Torque Specification
G10405834Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 7.5 (0.76, 5.5)
