Turbo Model

WARNING: This page is about a different variant/trim than selected.

Install the oil level switch and the clip (A) to the oil pan upper.
NOTE:
- Use new O-rings.
- Apply a coat of engine oil to the O-rings.
Tightening torque:

6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

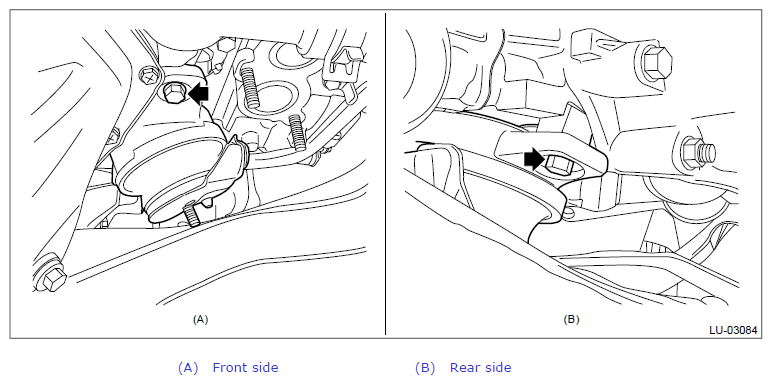

Fig 1: Locating Oil Level Switch Bolts
Courtesy of SUBARU OF AMERICA, INC.
Install the engine mounting LH onto the engine.
Tightening torque:

35 N.m (3.6 kgf-m, 25.8 ft-lb)

Fig 2: Locating Engine Mounting LH Bolts
Courtesy of SUBARU OF AMERICA, INC.
Lower the engine and remove the lifting device and wire ropes.

Fig 3: Supporting Engine Using Lifting Device And Wire Ropes
Courtesy of SUBARU OF AMERICA, INC.
Install the bolt which secures the transmission harness stay to the CVT.
Tightening torque:

15 N.m (1.6 kgf-m, 11.8 ft-lb)

Fig 4: Locating Transmission Harness Stay Bolt
Courtesy of SUBARU OF AMERICA, INC.
Install the pitching stopper.
Tightening torque:

T1: 50 N.m (5.1 kgf-m, 36.9 ft-lb)

T2: 58 N.m (5.9 kgf-m, 42.8 ft-lb)

Fig 5: Identifying Pitching Stopper
Courtesy of SUBARU OF AMERICA, INC.
Install the intercooler. Ref. to INTAKE (INDUCTION) (H4DOTC) > Intercooler > INSTALLATION .
Lift up the vehicle.
Install the electric power steering gearbox. Ref. to POWER ASSISTED SYSTEM (POWER STEERING) > Electric Power Steering Gearbox > INSTALLATION .
Install the front drive shaft LH. Ref. to DRIVE SHAFT SYSTEM > Front Drive Shaft > INSTALLATION .
NOTE:
- Make sure that locators (A) of the engine mounting are securely inserted.
- Use a new nut.
Tightening torque:

60 N.m (6.1 kgf-m, 44.3 ft-lb)

Fig 6: Engine Mounting Locators
Courtesy of SUBARU OF AMERICA, INC.
Connect the connector of oil level switch to the engine harness, and install the clip (A) securing the harness.

Fig 7: Locating Oil Level Switch Connector
Courtesy of SUBARU OF AMERICA, INC.
Install the front exhaust pipe. Ref. to EXHAUST(H4DOTC) > Front Exhaust Pipe > INSTALLATION .
Install the under cover. Ref. to EXTERIOR/INTERIOR TRIM > Front Under Cover > INSTALLATION .
Install the air intake duct (rear). Ref. to INTAKE (INDUCTION) (H4DOTC) > Air Intake Duct > INSTALLATION .
Connect the battery ground terminal.
Install the collector cover.
Refill the engine oil. Ref. to LUBRICATION(H4DO) > Engine Oil > REPLACEMENT .
Change the installation position of the front hood damper from (B) to (A).
Tightening torque:

20 N.m (2.0 kgf-m, 14.8 ft-lb)

Fig 8: Identifying Front Hood Damper Mounting Position
Courtesy of SUBARU OF AMERICA, INC.
Install the front center grille assembly to the front hood.
Tightening torque:

4.5 N.m (0.5 kgf-m, 3.3 ft-lb)

Fig 9: Locating Front Center Grille Assembly Bolts
Courtesy of SUBARU OF AMERICA, INC.
Align the alignment marks (A), and install the front hood striker to the front hood.
Tightening torque:

33 N.m (3.4 kgf-m, 24.3 ft-lb)

Fig 10: Identifying Alignment Marks On Front Hood Striker
Courtesy of SUBARU OF AMERICA, INC.
Install the upper grille bracket to the front hood, and close the front hood.
Tightening torque:

4.5 N.m (0.5 kgf-m, 3.3 ft-lb)

Fig 11: Locating Upper Grille Bracket Bolt
Courtesy of SUBARU OF AMERICA, INC.
