Mass Air Flow and Intake Air Temperature Sensor: Removal

  1. Disconnect the ground cable from battery. < Ref. to BATTERY , NOTE, Note. >
    NOTE: For the 12 volt engine restart battery, disconnect the ground terminal from 12V engine restart battery sensor.
  2. Disconnect the connector (A) from the mass air flow and intake air temperature sensor, and remove the mass air flow and intake air temperature sensor.

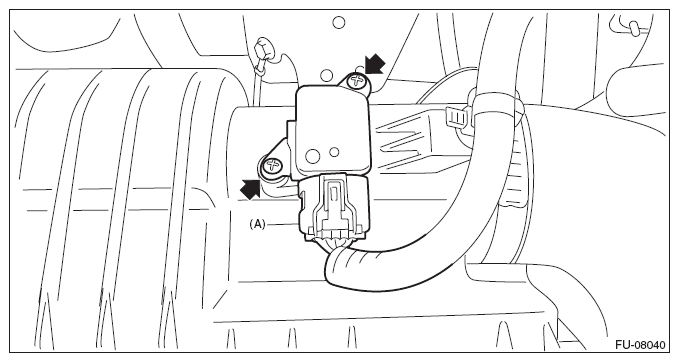

    Fig 1: Locating Mass Air Flow And Intake Air Temperature Sensor Screws
    G09487133Courtesy of SUBARU OF AMERICA, INC.
