Circuit figure

WARNING: This page is about a different car, the 2014 Subaru BRZ. However, it is still accessible from the selected car via links, so may be relevant.

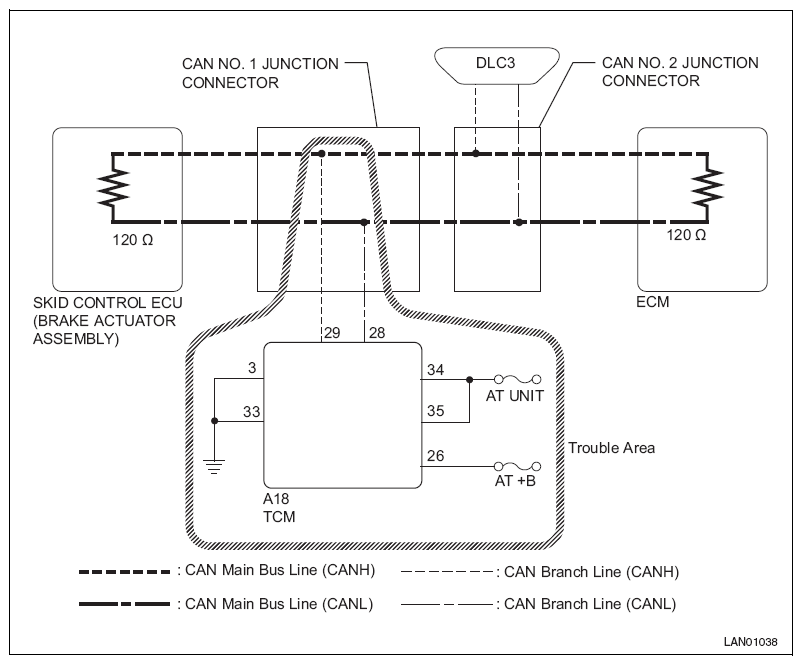

Fig 1: Brake Actuator Assembly And ECM - Circuit Diagram
G08552927Courtesy of SUBARU OF AMERICA, INC.
