Circuit Figure

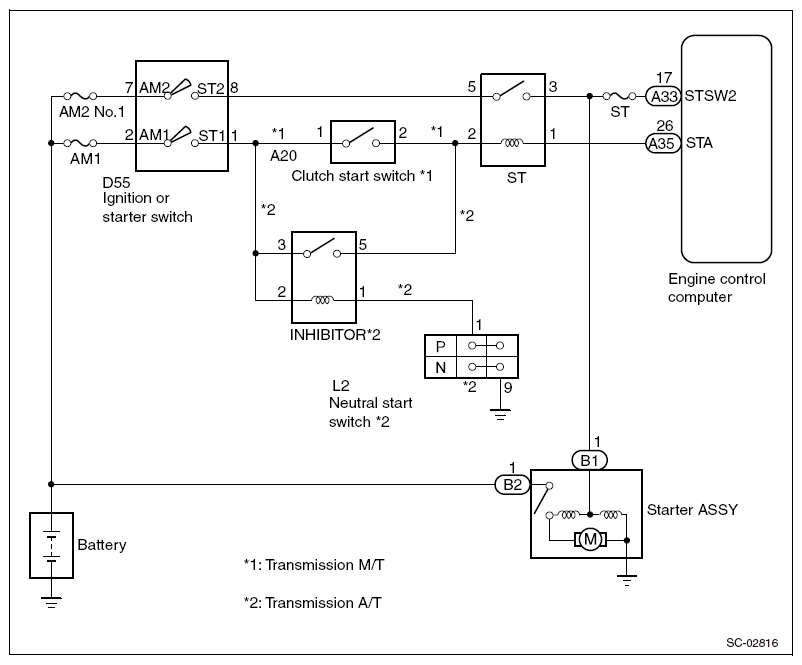

Fig 1: Starting System Circuit Diagram

G08556732

Courtesy of SUBARU OF AMERICA, INC.
