2016
>>
BRZ Limited, Automatic Trans
>>
Repair and Diagnosis
>>
Brakes
>>
Traction Control
>>
Vehicle Stability Control (VSC) System
>>
Vehicle Stability Control System
>>
Brake Warning Light Remains ON
>>
Circuit figure
Circuit figure

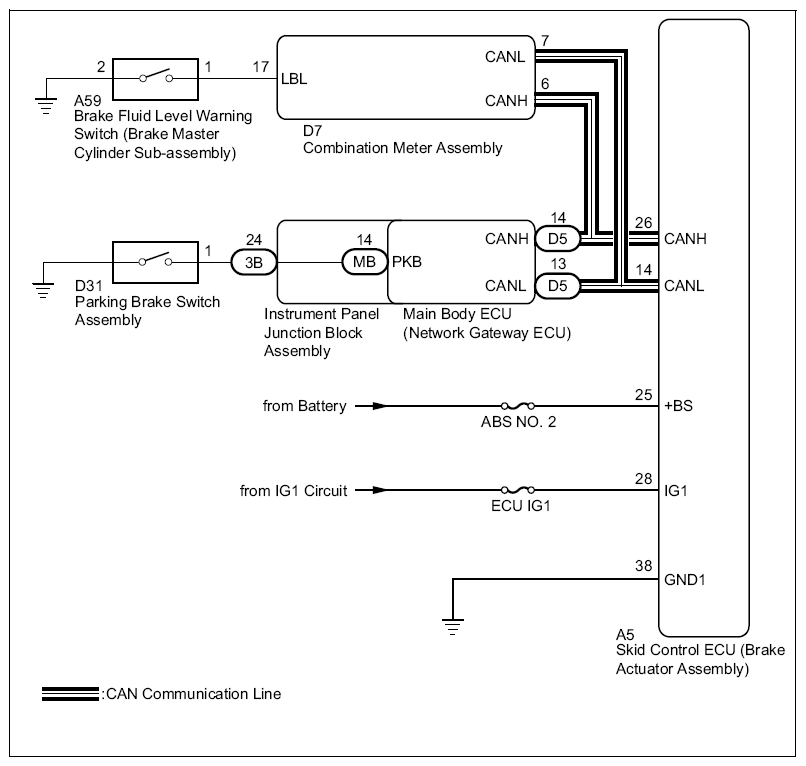

Fig 1: Skid Control Computer ECU (Brake Actuator Assembly) Circuit Diagram
