Unit Inspection
- Inspection of power window regulator motor assembly LH (driver's side door)CAUTION:
- Apply the voltage to the motor terminals 1 and 3 only. Otherwise, the pulse sensor inside the motor can be damaged.
- After removing or replacing the power window regulator motor assembly, perform the initialization of the power window system. (Refer to REGISTRATION SETTINGS )

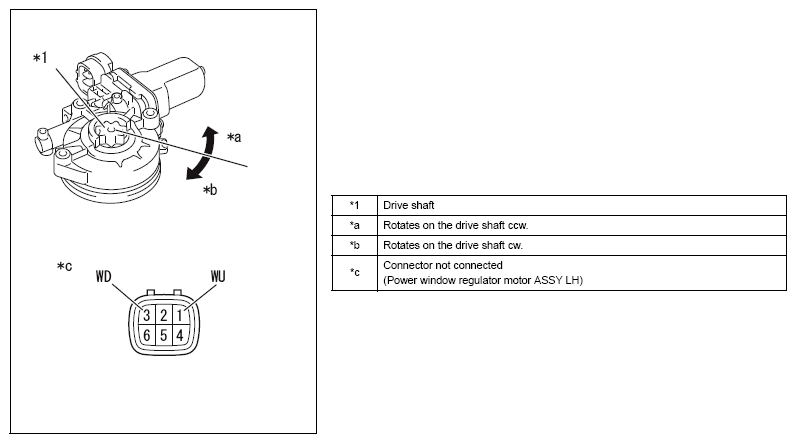

- Apply battery voltage to each connector terminal of the power window regulator motor assembly LH and check that the power window regulator motor assembly LH operates smoothly.
Criteria
CRITERIA SPECIFICATIONBattery connection Criteria Battery positive terminal - 3 (WD)
Battery ground terminal - 1 (WU)Rotates on the drive shaft ccw (open). Battery positive terminal - 1 (WU)
Battery ground terminal - 3 (WD)Rotates on the drive shaft cw (close).
- Inspection of power window regulator motor assembly RH (passenger's side door)CAUTION:
- Apply the voltage to the motor terminals 1 and 3 only. Otherwise, the pulse sensor inside the motor can be damaged.
- After removing or replacing the power window regulator motor assembly, perform the initialization of the power window system. (Refer to REGISTRATION SETTINGS )

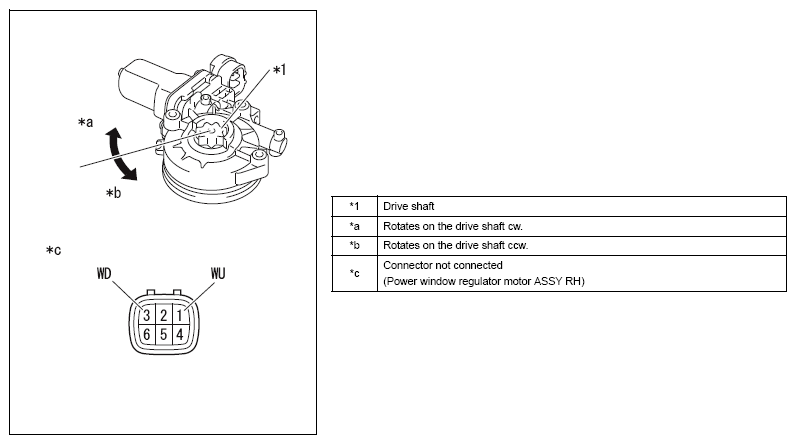

- Apply battery voltage to each connector terminal of the power window regulator motor assembly RH and check that the power window regulator motor assembly RH operates smoothly.
Criteria
CRITERIA SPECIFICATIONBattery connection Criteria Battery positive terminal - 3 (WD)
Battery ground terminal - 1 (WU)Rotates on the drive shaft cw (open). Battery positive terminal - 1 (WU)
Battery ground terminal - 3 (WD)Rotates on the drive shaft ccw (close).
