Wireless Door Lock Control System (Service Information)
>>
Front Door Lock Assembly
>>
Exploded View
Exploded View

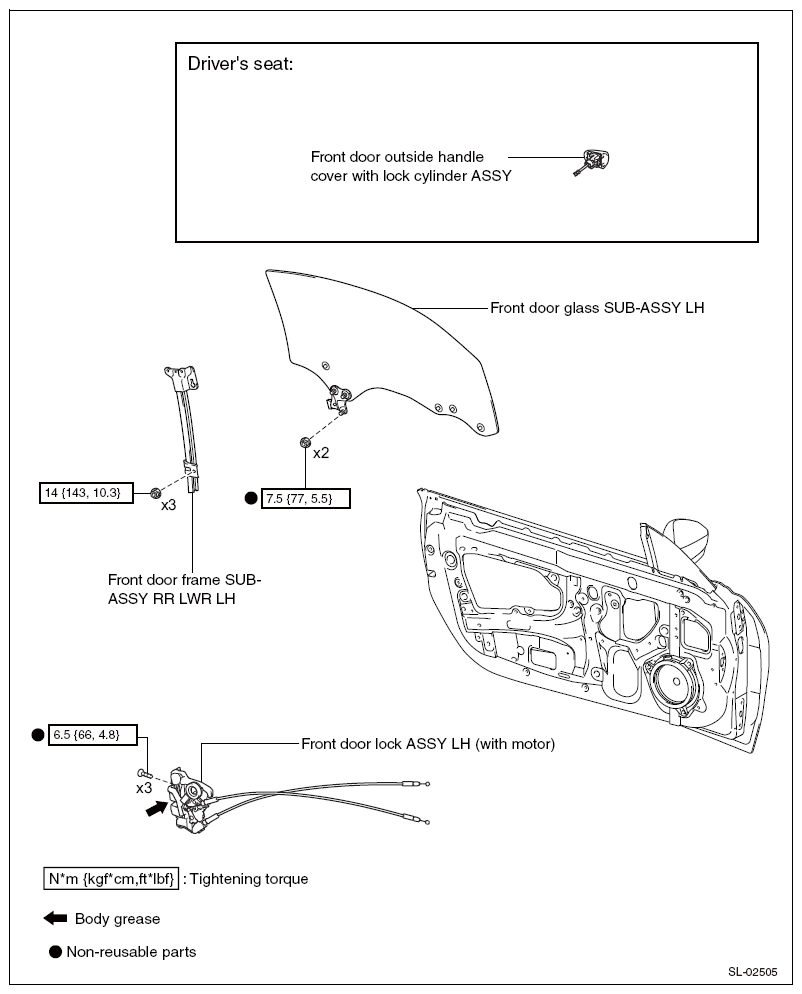

Fig 1: Exploded View Of Front Door Lock Assembly (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

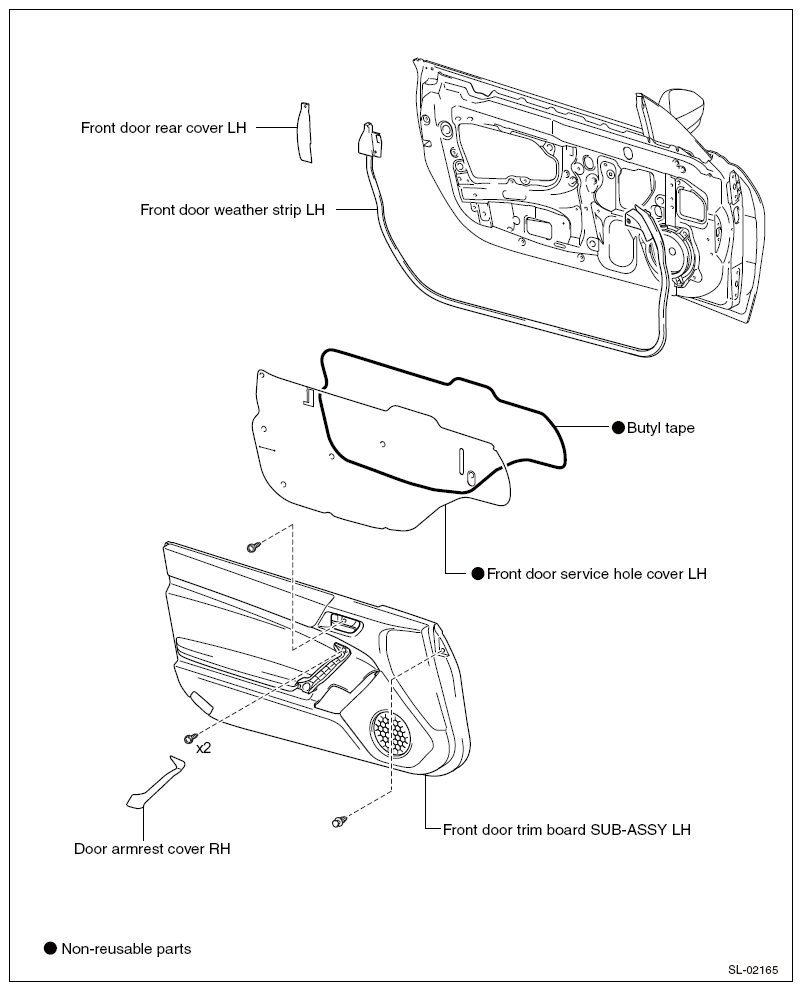

Fig 2: Exploded View Of Front Door Lock Assembly With Torque Specifications (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
