Radar Sensor LH (Master)

WARNING: This page is about a different car, the 2016 Subaru Outback and 2016 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the ground terminal from battery sensor. < Ref. to BATTERY , NOTE, Repair Contents. >
Remove the bumper face - rear. < Ref. to REMOVAL , Rear Bumper. >
Remove the radar sensor LH (master).
1. Disconnect the connector.
2. Remove the nut and remove the radar sensor LH.

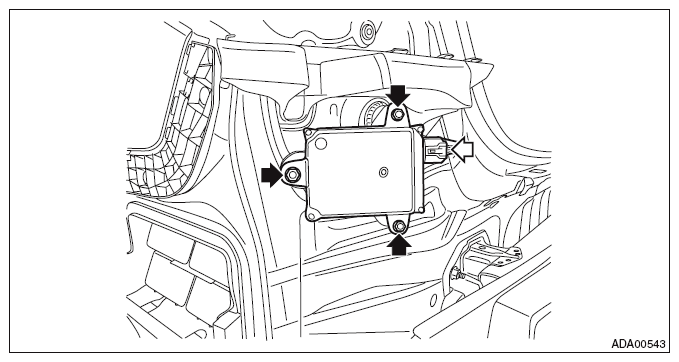

  Fig 1: Locating Radar Sensor LH Nuts And Connector
  Courtesy of SUBARU OF AMERICA, INC.
Remove the radar bracket.
1. Remove the harness clamp. (OUTBACK model)
2. Remove the nut and remove the radar bracket.

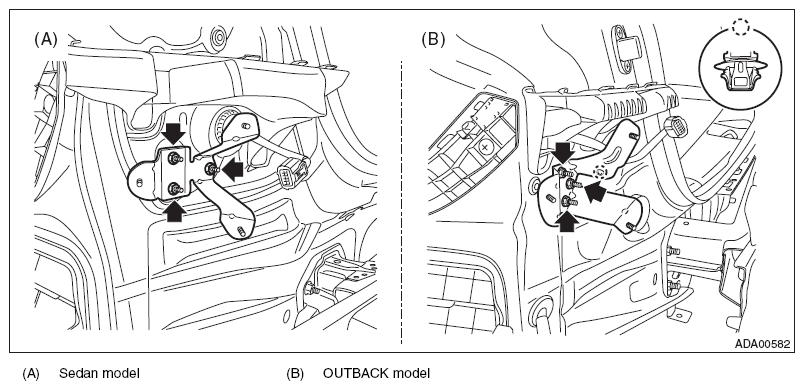

  Fig 2: Locating Harness Clamp And Radar Bracket Nuts
  Courtesy of SUBARU OF AMERICA, INC.
