Crankshaft Position Sensor (Method With Oscilloscope)

  1. Prepare an oscilloscope.
  2. Remove the glove box. < Ref. to REMOVAL , Glove Box. >
  3. Connect the probe to ECM connector.

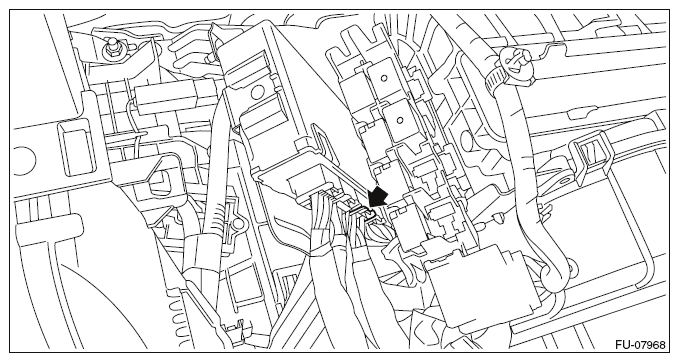

    Fig 1: Locating ECM Connector
    G09475529Courtesy of SUBARU OF AMERICA, INC.

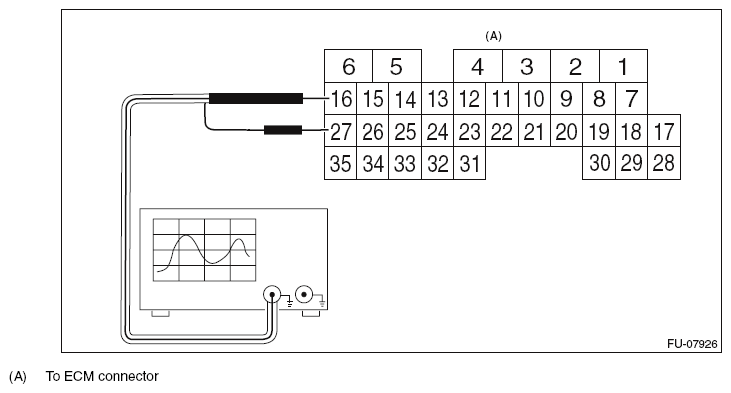

    Fig 2: Measuring Crankshaft Position Sensor Waveform At Connector
    G09475530Courtesy of SUBARU OF AMERICA, INC.
    Terminal No. Probe
    16 +
    27 -
  4. Start the engine and let it idle.
  5. Check the pattern is the same as the waveform and voltage shown below.

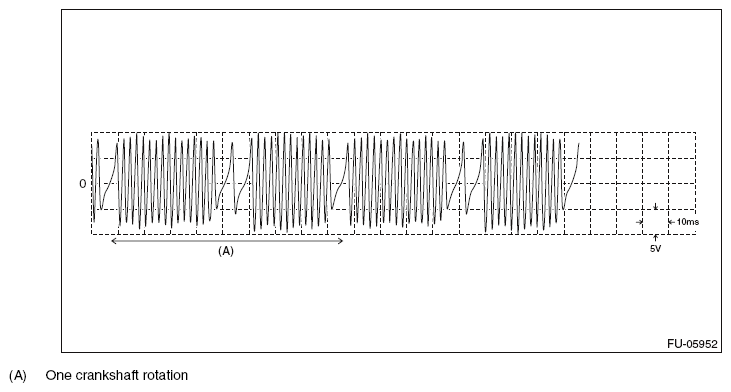

    Fig 3: Crankshaft Position Sensor Voltage Waveform
    G09475531Courtesy of SUBARU OF AMERICA, INC.
  6. After inspection, install the related parts in the reverse order of removal.
