Door Control Transmitter (Without Smart Entry): Removal

WARNING: This page is about a different car, the 2014 Subaru BRZ. However, it is still accessible from the selected car via links, so may be relevant.
  1. Removal of transmitter housing cover
    1. Using a flat tip screwdriver wrapped with protective tape, remove the transmitter housing cover.

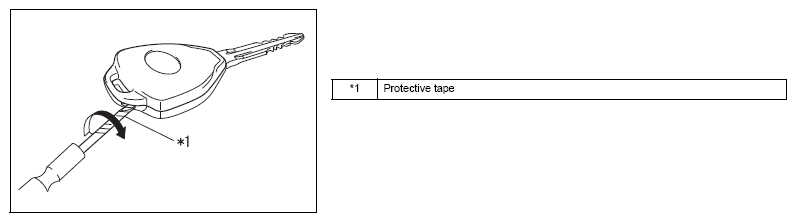

      Fig 1: Removing Transmitter Housing Cover Using Flat Tip Screwdriver Wrapped With Protective Tape
      G08557473Courtesy of SUBARU OF AMERICA, INC.
      CAUTION: Do not pry the cover excessively.
  2. Removal of door control transmitter module set
    1. Remove the door control transmitter module set from the transmitter housing case.

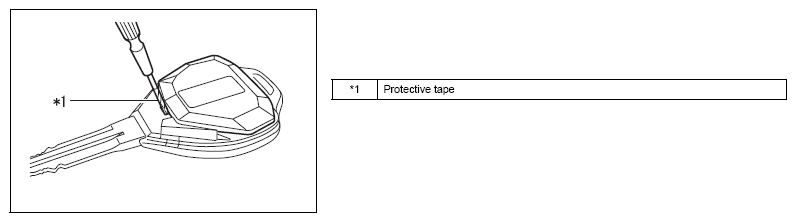

      Fig 2: Removing Door Control Transmitter Module Set From Transmitter Housing Case
      G08557474Courtesy of SUBARU OF AMERICA, INC.
  3. Removal of door control transmitter gasket
    1. Remove the door control transmitter gasket
  4. Removal of transmitter battery (Refer to REPLACEMENT  )
