Door Control Transmitter (Without Smart Entry): Installation

WARNING: This page is about a different car, the 2014 Subaru BRZ. However, it is still accessible from the selected car via links, so may be relevant.
  1. Installation of transmitter battery (Refer to REPLACEMENT  )
  2. Installation of door transmitter gasket
    1. Install the door control transmitter gasket.
  3. Installation of door control transmitter module set
    1. Install the door control transmitter module set to the transmitter housing case.

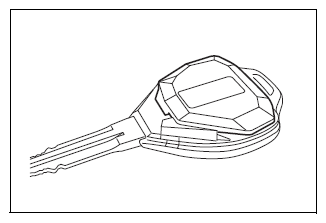

      Fig 1: Identifying Door Control Transmitter Module Set
      G08557475Courtesy of SUBARU OF AMERICA, INC.
  4. Installation of transmitter housing cover
    1. Install the transmitter housing cover to the transmitter housing case.
    2. Check that the main body LED illuminates when any of the remote control switches is pressed.

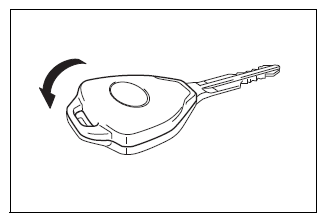

      Fig 2: Installing Transmitter Housing Cover To Transmitter Housing Case
      G08557476Courtesy of SUBARU OF AMERICA, INC.
