Power Rear Gate Inner Switch: Removal

WARNING: This page is about a different car, the 2014 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the ground cable from battery.
  2. Remove the power rear gate inner switch.
    1. Release the claws and pull out the power rear gate inner switch rearward.
      NOTE: Insert a flat tip screwdriver wrapped with protective tape into the slit on the left.
    2. Disconnect the connector and remove the power rear gate inner switch.

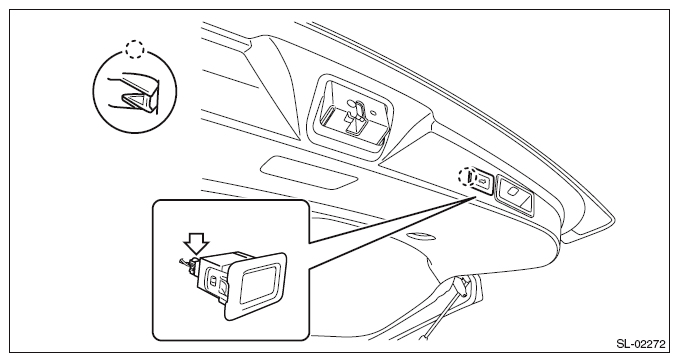

      Fig 1: Identifying Power Rear Gate Inner Switch
      G09485119Courtesy of SUBARU OF AMERICA, INC.
