Accessory Relay (Push Button Start): Removal

WARNING: This page is about a different car, the 2014 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the cover assembly - instrument panel LWR driver and the knee airbag module. < Ref. to REMOVAL , Knee Airbag Module. >
  2. Release the lock and remove the fuse holder.
    Fig 1: Locating Accessory Relay (Push Button Start) Fuse Holder
    G08315475Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the accessory relay (push button start) (A) from the relay and fuse box.

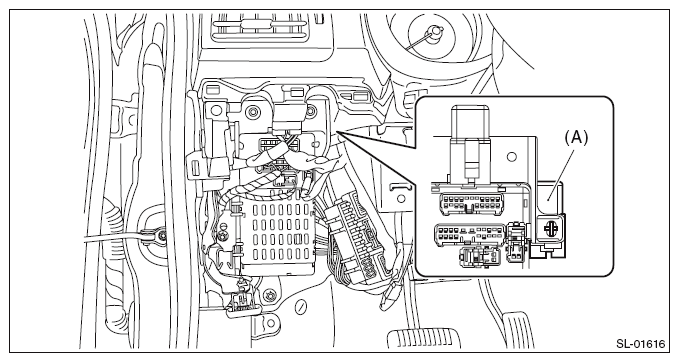

    Fig 2: Locating Accessory Relay (Push Button Start) Fuse Holder
    G09484752Courtesy of SUBARU OF AMERICA, INC.
