Non-Turbo Model

WARNING: This page is about a different car, the 2014 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

Install in the reverse order of removal.

Tightening torque: 50 N.m (5.1 kgf-m, 36.9 ft-lb)

NOTE: For CVT model, a nut is used at (A).

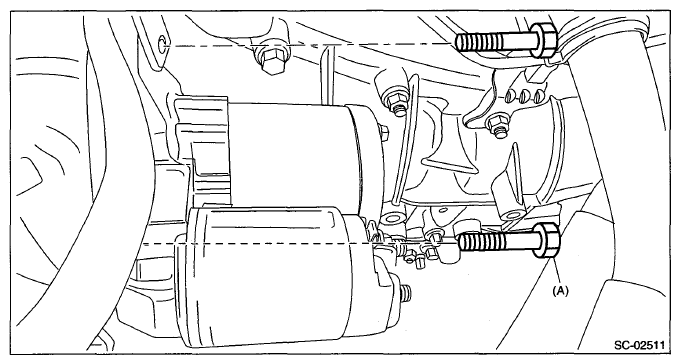

Fig 1: Identifying Bolt And Nut Of Starter

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: 10 N.m (1.0 kgf-m, 7.4 ft-lb)

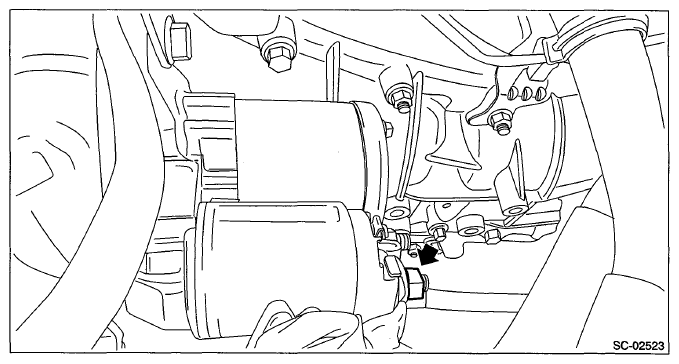

Fig 2: Locating Nut Of Starter

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: 3 N.m (0.3 kgf-m, 2.2 ft-lb)

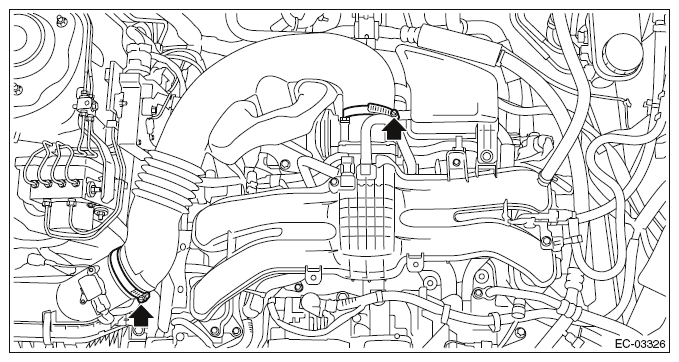

Fig 3: Locating Air Intake Boot Clamp

Courtesy of SUBARU OF AMERICA, INC.
