MODELS WITH EyeSight

WARNING: This page is about a different car, the 2014 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: The spot map light is a single unit with the stereo camera cover.
  1. Remove the stereo camera cover. < Ref. to REMOVAL , Stereo Camera. >
    CAUTION: When using a flat tip screwdriver, apply protective tape or cloth and be careful not to cause damage.
  2. Release the claws and remove the lens.
  3. Remove the bulb.

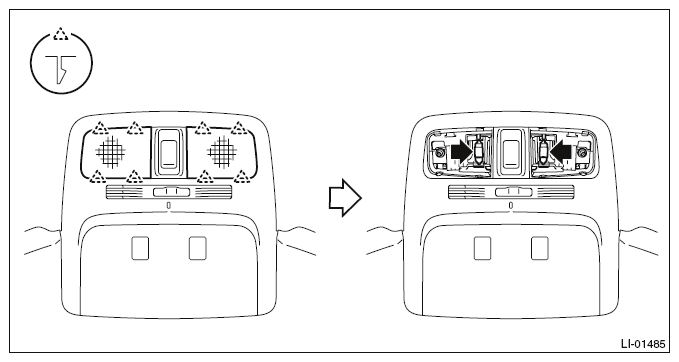

    Fig 1: Locating Spot Map Light Bulb
    G09484268Courtesy of SUBARU OF AMERICA, INC.
