Power Rear Gate Touch Sensor: Removal

WARNING: This page is about a different car, the 2014 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the ground cable from battery.
  2. Remove the trim panel - rear gate LWR. < Ref. to REMOVAL , Rear Gate Trim. >
  3. Remove the power rear gate touch sensor.
    1. Disconnect the connector.
    2. Remove the bolts, release the clips, and then remove the power rear gate touch sensor.

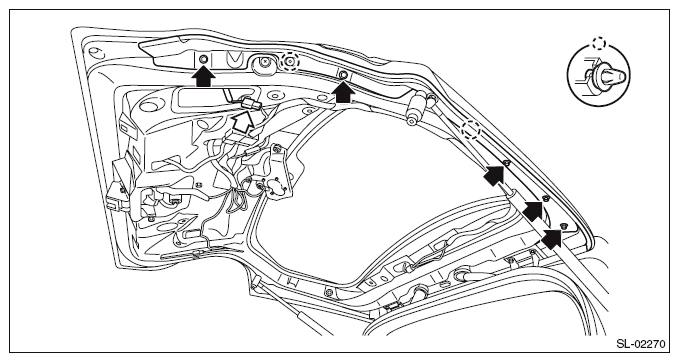

      Fig 1: Locating Power Rear Gate Touch Sensor Bolts
      G09485116Courtesy of SUBARU OF AMERICA, INC.
