Home
>>
Subaru
>>
2014
>>
BRZ Premium
>>
Repair and Diagnosis
>>
Transmission
>>
M/T Clutch System
>>
Clutch
>>
Exploded View
Exploded View

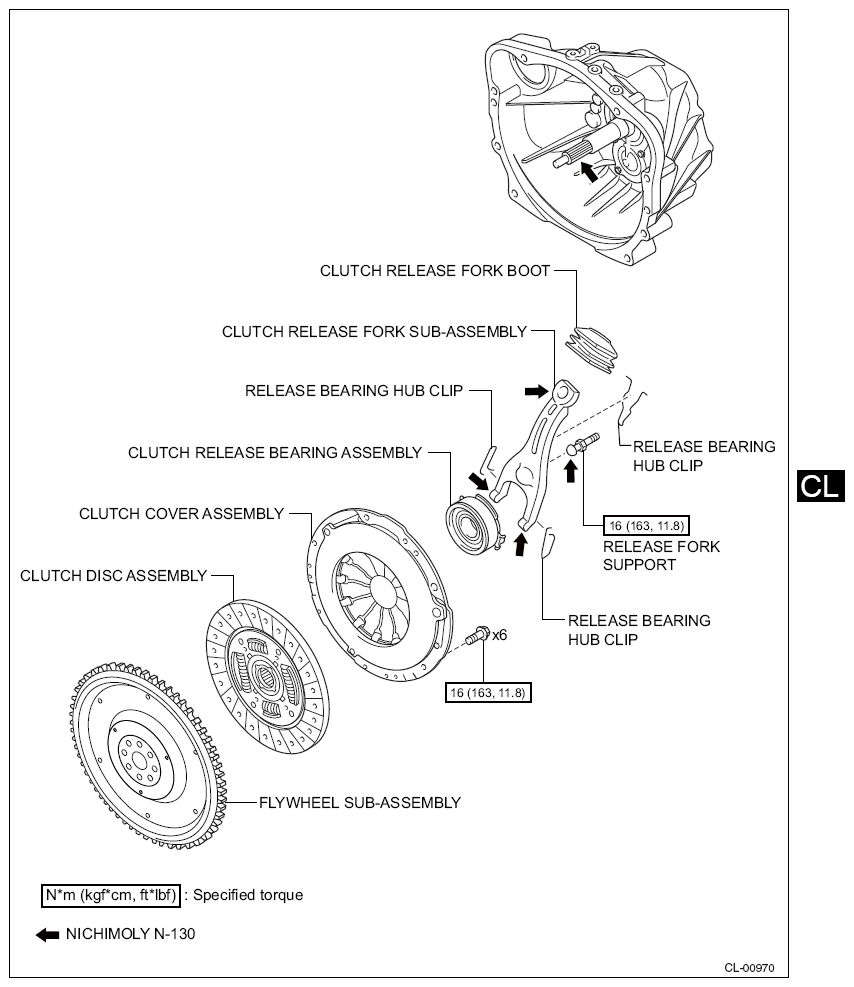

Fig 1: Exploded View Of Clutch With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
