Circuit figure

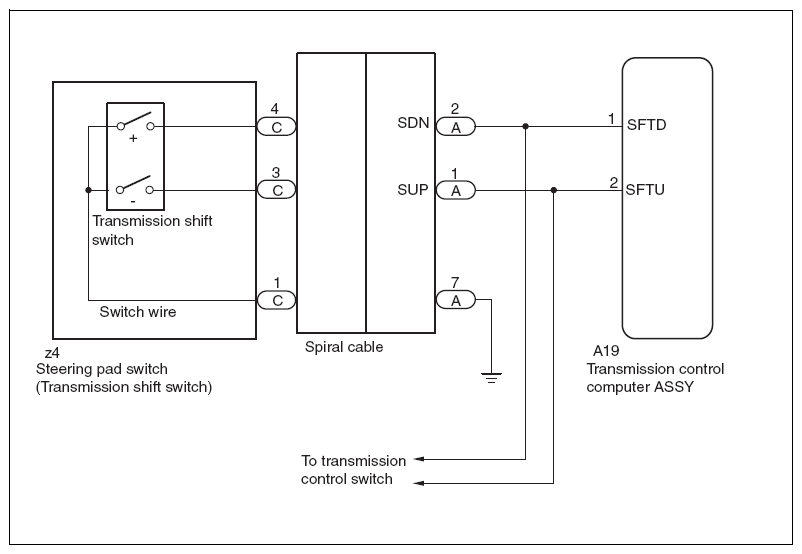

Fig 1: Paddle Shift Switch System - Circuit Diagram

G08552764

Courtesy of SUBARU OF AMERICA, INC.
