Engine Control System (Diagnostics) - Introduction & DTC Index
>>
EFI System (FA20)
>>
Parts Location
Parts Location

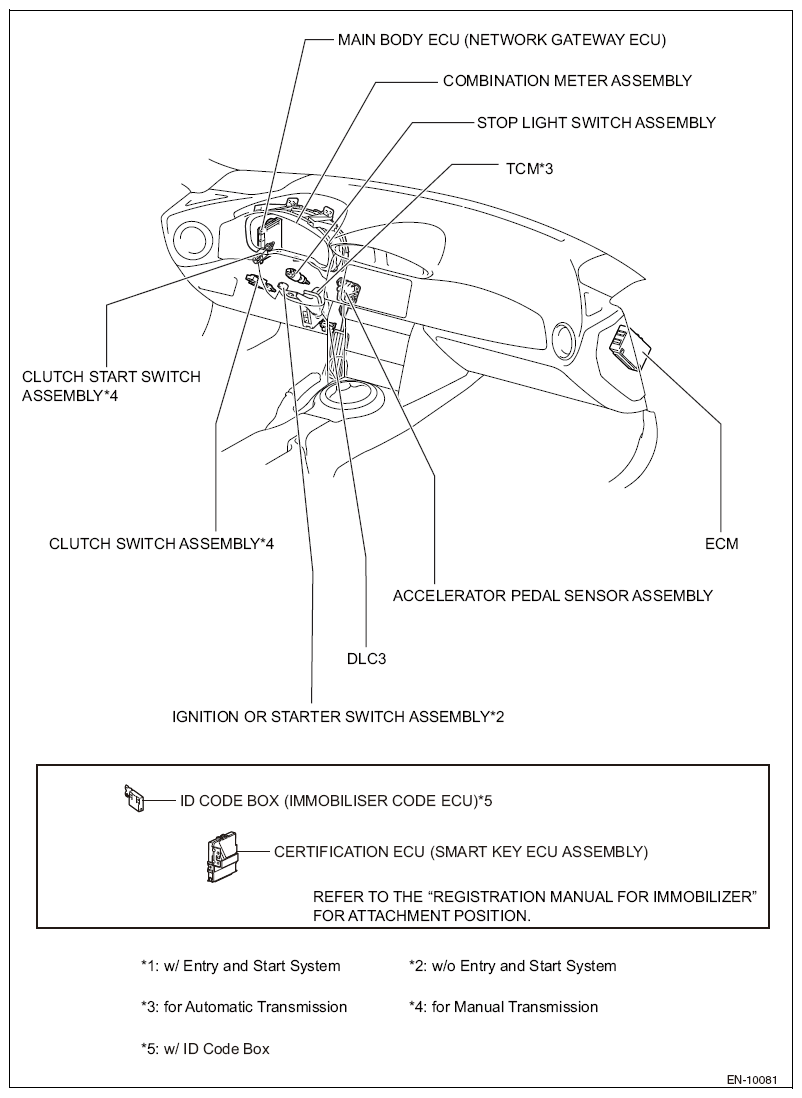

Fig 1: EFI System Components Location (1 Of 4)
Courtesy of SUBARU OF AMERICA, INC.

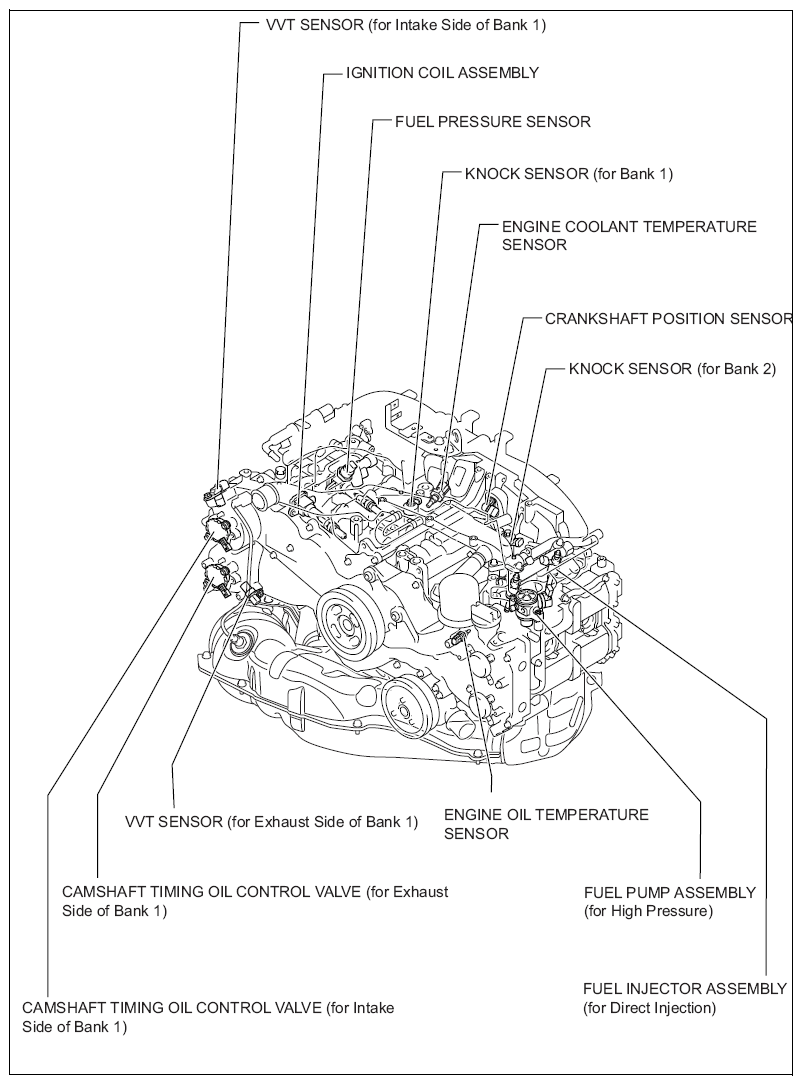

Fig 2: EFI System Components Location (2 Of 4)
Courtesy of SUBARU OF AMERICA, INC.

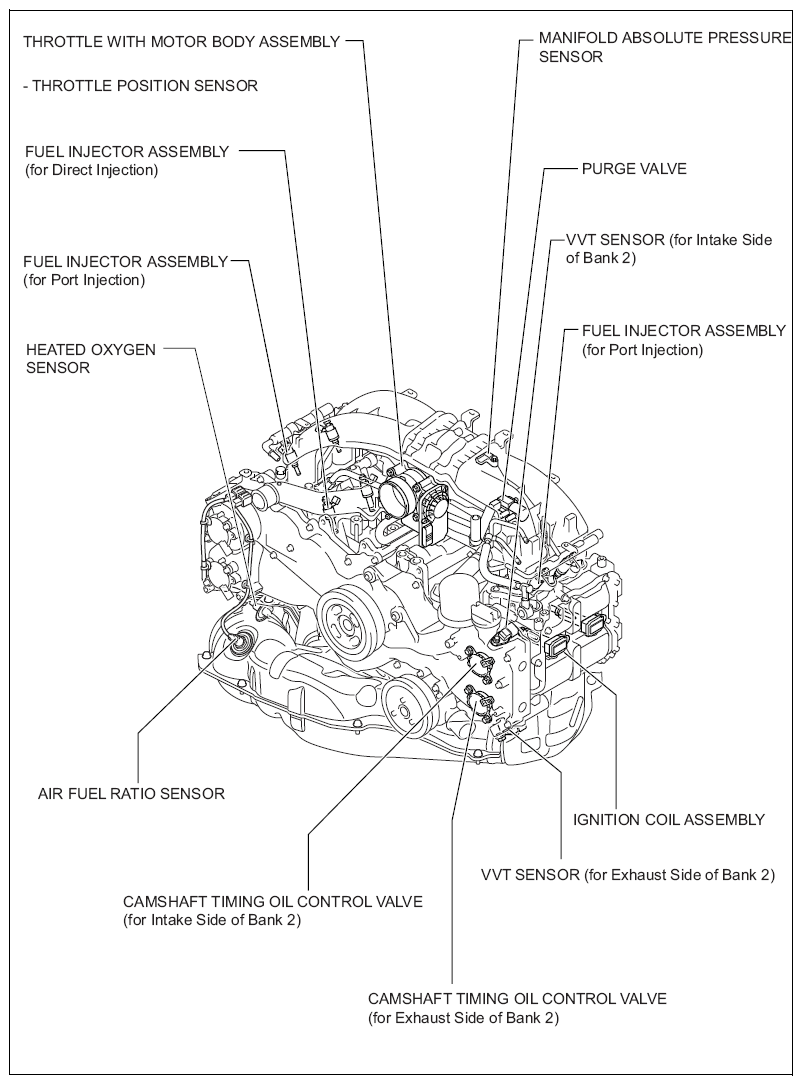

Fig 3: EFI System Components Location (3 Of 4)
Courtesy of SUBARU OF AMERICA, INC.
Fig 4: EFI System Components Location (4 Of 4)
Courtesy of SUBARU OF AMERICA, INC.
