Circuit figure

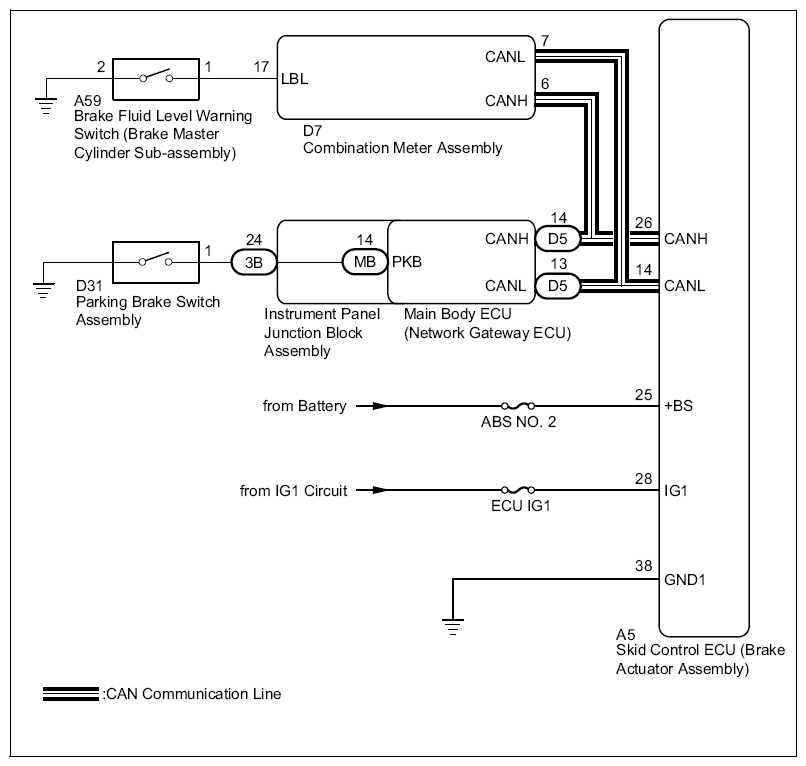

Fig 1: Skid Control ECU (Brake Actuator Assembly) - Circuit Diagram

G08555338

Courtesy of SUBARU OF AMERICA, INC.
